Fujimi 1/20 Ferrari 126 C2

KIT: Fujimi 1/20 Ferrari 126 C2
KIT #: 090344
DECALS: Two options
REVIEWER: Scott Van Aken
NOTES: New mold kit


The Ferrari 126C was designed to replace the highly successful but obsolete 312T series in use since 1975. The basic chassis was almost identical to the previous car but the smaller V6 turbo engine suited the ground effect aerodynamics now needed to be competitive, and was a better package overall. The engine was fitted with twin KKK turbochargers and produced around 600bhp in qualifying trim, detuned to 550bhp for the races proper. The car proved to be very fast but Gilles Villeneuve found the handling to be atrocious. The engine had massive turbo lag, followed by a ferocious power curve; this upset the balance of the chassis. Coupled to the chassis' hard suspension, the car tended to slide into corners before the ground effect pulled the car back on to the track. This had the undesired effects of exposing the drivers to even larger g-forces than the Williams FW07 or Brabham BT49 and making the car tend to overuse its tyres. In all it made for a very tricky driving experience.

The car was first tested during the Italian Grand Prix in 1980. In testing it proved far faster than the 312T5 chassis the team were then using and Gilles Villeneuve preferred it, though he had reservations about the handling. Early unreliability of the turbo engine put paid to Villeneuve's 1981 championship hopes but he did score back to back victories in Monaco and Spain, as well as several podium places. Because of the problematic handling the 126C was at its best on fast tracks such as Hockenheim, Silverstone, Monza and the Ísterreichring.

With the arrival of Harvey Poslethwaite and a complete overhaul of the car in time for the 1982 season, things looked better. The turbo engine was further developed and reliability found, while the chassis was completely redesigned, featuring Ferrari's first genuine full monocoque chassis. Smaller and nimbler, the 126C2  (the subject of this kit) handled far better than its predecessor. Villeneuve and Didier Pironi posted record times in testing with the new car and began the season promisingly with several solid results. Then came the infamous race at San Marino where Pironi disobeyed team orders and stole the win from Villeneuve. The fallout from the race led to Villeneuve's tragic death in an horrific accident during qualifying at the next round in Belgium, which left Pironi as team leader. Pironi himself was nearly killed in a similar accident in Germany, putting an end to his motor racing career, but this didn't stop Ferrari from winning the constructors' championship that year. The 126C2 was further developed during the season, with new wings and bodywork tried, and the engine's power boosted to 650bhp in qualifying trim and around 600bhp in races.

Mandatory flat bottoms for the cars were introduced for 1983, reducing ground effect, and the 126C3 was designed with this in mind. Poslethwaite designed an over-sized but effective rear wing which clawed back around 50% of the lost downforce, whilst further compensation came from the engineers who boosted the power of the engine even further, to around 700bhp. Patrick Tambay and RenÚ Arnoux scored four wins between them and were both in contention for the world championship throughout 1983 but late unreliability cost them both. However, Ferrari took the constructors' title for the second year in a row.

The 1984 season season wasn't as successful, as McLaren introduced their extremely successful MP4/2 car, which was far more effective than the 126C4 and dominated the year. Michele Alboreto won just once and Ferrari finished as runner up in the constructors' championship.

The 126C series cars won 10 races, took 10 pole positions and scored 260.5 points.


Fujimi has built up an excellent and well deserved reputation for producing well molded and detailed car kits. This one is no exception. It seems that 1/20 scale is used almost exclusively to do Formula 1 car kits (I say almost as I have a few Tamiya sports racers in this scale). This is undoubtedly due to the somewhat small size of the actual car and so providing kits in this larger scale gives a model of reasonable size.

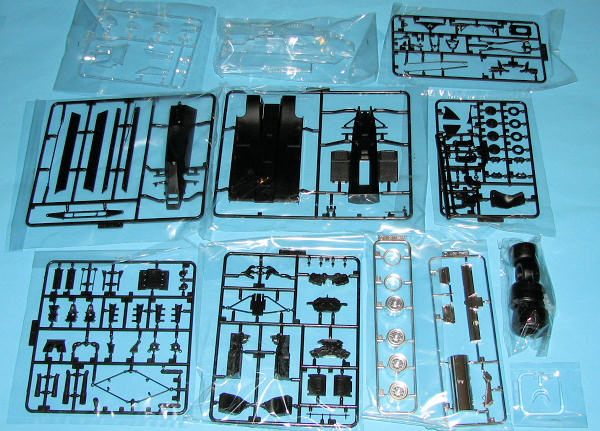

Molded in red, black and clear. The nearly 150 parts are on a dozen sprues, two of which are plated chrome and aluminum, while three more, including the body are in clear plastic. The molding is superb with nary a sign of flash or sink areas. There are some ejector pin marks to be sure, but most will be hidden after construction or easily removed.

The driver's compartment is superbly done, missing only a racing harness to be complete. The engine is a jewel and consumes about a third of the construction steps in the instruction sheet. Rubber tires are included and they are hollow so will provide the needed 'give'. Fujimi has gone to great lengths to provide a most detailed suspension system. It looks properly light and 'spidery', though like a rigged biplane, should prove to be quite sturdy when all the parts are assembled. I'm not sure why the body bits are molded in clear plastic, but perhaps it is to more easily show off the engine, cockpit and suspension bits that are normally hidden. Unlike the earlier Long Beach boxing, this kit has the smaller rear wing. This is on part of the chrome sprue, but really, one should strip the chrome and paint it aluminum as it is far too shiny.

Instructions are superbly done with well drawn construction sequences and detail drawings where needed. Color references are by Gunze paints and since the instructions are almost all in Japanese, figuring them out will be a touch difficult for some. Markings are provided for two cars. One driven by Gilles Villeneuve does not have the nose wing while and the other by Didier Pironi is supposed to have this fitted. There is probably more to it, but with the little notes provided unreadable by this reviewer, it the best I can do. The nose wing assembly is not shown in the actual build portion of the instructions, but is clearly shown in the markings and painting guide. Would be best to have something in terms of pictures for the event you wish to portray. The decals are very nicely done and should work quite well. As a final note, both drivers had their driving careers end in 1982 with Villeneuve being killed and Pironi very badly injured in crashes prior to races.


Overall, an outstanding new kit that I'm sure will find favor with those who like racing cars. As it is a Ferrari, it is bound to sell well and quickly.



July 2008

My thanks to www.dragonmodelusa.com for the review kit. Get yours today at your local shop or ask them to order it for you.
