Hasegawa 1/72 Ki-49-I Donryu 'Hammamatsu Flying School
KIT #: 02418
PRICE: 3400 yen SRP
DECALS: Two options
REVIEWER: Scott Van Aken
NOTES: 2022 Limited Edition.



HISTORY

Going operational from autumn 1941, the Ki-49 first saw service in China. After the outbreak of the Pacific War it was also active in the New Guinea area and in raids on Australia. Like the prototype, these early versions were armed with five 7.7 mm (0.303 in) machine guns and one 20 mm cannon. Combat experience in China and New Guinea showed the Donryu to be underpowered, with bomb capacity and speed suffering as a result. Thus, in the spring of 1942 an up-engined version was produced, fitted with more powerful Ha-109 engines and this became the production Army Type 100 Heavy Bomber Model 2 or Ki-49-IIa. The Model 2 also introduced improved armor and self-sealing fuel tanks and was followed by the Ki-49-IIb in which 12.7mm (0.5 in) Ho-103 machine guns replaced three of the 7.7 mm (0.303 in) Type 89 machine guns.

In spite of these improvements, losses continued to mount as the quantity and quality of fighter opposition rose. An attempt was made to stop the rot in early 1943 by further up-engining the type. This petered out owing to development difficulties with the 1,805 kW (2,420 hp) Nakajima Ha-117 engines and the Ki-49-III never entered production with only six prototypes being built.

In the face of its increasing vulnerability to opposing fighter aircraft while performing its intended role, the Ki-49 was used in other roles towards the end of the Pacific War, including ASW patrol, troop transport and as a kamikaze. After 819 aircraft had been completed, production ended in December 1944.

THE KIT

For whatever reason, the Ki-49 does not seem to be a very popular subject for modelers. I've only seen a few built in all these years and I often wonder why. Perhaps it is the plethora of tiny windows that have scared away modelers once they realize what they've gotten themselves into. It is certainly not lacking in nice surface detailing and it does offer fairly standard detailing for your average 1/72 kit.

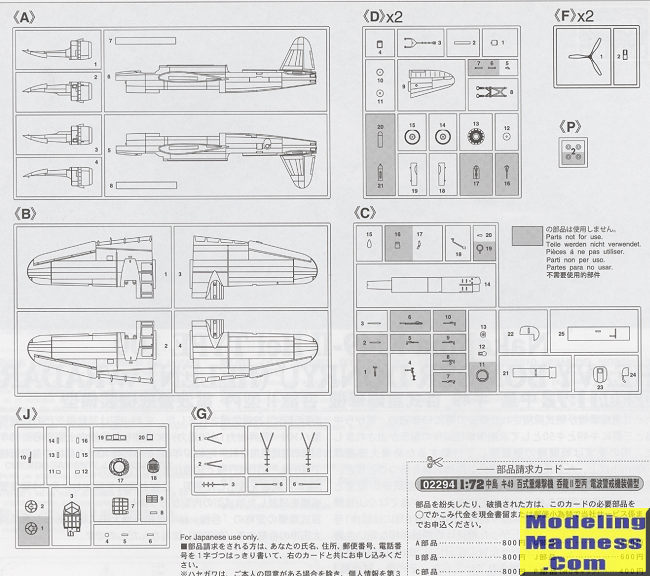

The cockpit section s fairly basic with a pair of seats, control wheel assembly and an instrument panel. The bomb bay attaches to the interior floor and there is an additional small floor with a bulkhead for the tail gun position. As mentioned, there are windows galore and several of the ones in the rear fuselage need to be attached from the outside. Some holes need to be drilled as well to do this variant.

Engine nacelles are left and right halves that incorporate the gear well. I think this is a step backwards as it leaves a seam at the front of the engine opening that is always difficult to deal with, especially as the engine needs to be installed prior to closing the nacelle halves. Add to this that the upper intake is molded in with the nacelle instead of being separate. Lower intake is separate so why not the upper as well? The props will be held in place by a polycap that fits behind the gearbox.

Since this is a mid wing aircraft, the wings are in upper and lower sections for both sides. If doing the kit version with radar, you need to open holes for mounting it. The wings and tailplanes are then slotted in place. Frankly, I'd wait until after attaching the cockpit, nose and tail clear bits to make it easier to mask and deal with any seams. You do have the option of having the bomb bay doors open or closed and bombs are provided for the open option.

The instructions then have you assemble and attach the landing gear and doors. I'd leave this step off until after painting. Then we add all the clear pieces and there are several of them. The only guns with the two options are the upper turret and lower gun.

Instructions are standard fare for Hasegawa and there are markings for two very similar planes.  Both are overall unpainted metal with grey-green control surfaces and black anti-glare areas on the inside of the engine nacelles and in front of the cockpit. This latter item is provided as a decal, which is a nice touch. The two options differ in the color of the school's marking on the fin and the placement of the fuselage insignia. That is it. Also included on the sheet is an instrument decal and the yellow wing ID bands. As this is a relatively new release, the decals are the newer type with actual white whites and should be fairly thin as well.

CONCLUSIONS

As mentioned, not exactly a kit for which many are clamoring, but it does look as if it will build into a very nice model and was one that Hasegawa initially released in the 1990s when they did a spate of twin engine aircraft. Looks like ICM beat them to doing a Ki-21 so for Hasegawa, that opportunity is now lost.

REFERENCES

https://en.wikipedia.org/wiki/Nakajima_Ki-49

February 2023
