Contrary to popular opinion, the first operational use of a helicopter (as compared to an autogyro), was not the US with the Sikorsky R-4, but the Luftwaffe with the Flettner Fl-265. The Germans had much success with the Focke-Wulf Fw-61, a rather ungainly twin rotor helo, however it wasn't able to carry any kind of useful payload. The Luftwaffe then turned to Flettner, who had a novel design using counter rotating intermeshing rotors. All Flettner helos had large tails for stability. Though it appears that this aircraft has a normal nose, there is no propeller there but a rotating cooling fan in the cowling of the 150 HP radial engine.

The 265 had a rather protracted development that is typical of highly experimental aircraft. Very few were built; only five airframes. However they were used for observation and anti-submarine work from the deck of cruisers in the Baltic during 1939 and 1940. Despite the ease of control, the design was quickly superceded by the much more advanced, but similarly designed Flettner Fl-282, a helo with an even greater payload capacity.

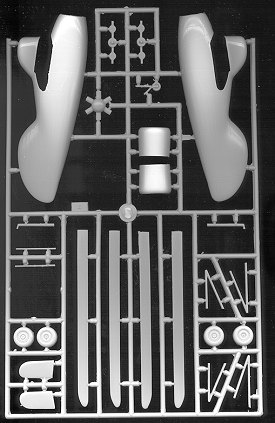

Special Hobby's kit is typical of their short-run efforts. All the parts come in a one-piece box with the decals and resin bits bagged separately. There is one large sprue of medium grey plastic with very fine engraved detailing. Personally, I wish the detailing was a bit heavier as any sanding needed (and it will be needed) will destroy the surrounding detail. All the parts had some flash on them which is typical of low-pressure injection molding. There is no problem with misaligned molds which is good as there are a lot of tubular forms.

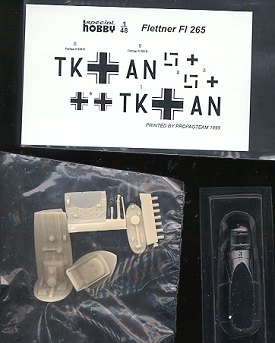

The resin pieces are for the interior and the engine front. These parts look well molded with no apparent air bubbles. There is one nice and thick vacuform canopy. The decals are by Propagteam so promise to be opaque and stick well. They are for the first prototype.

Instructions are again typical being 6 pages of which two are history, parts and color diagrams. There are four construction steps that are quite logical in sequence. Like other Special Hobby kits I have built, you have to do some scratchbuilding. In this case it is the interior framework. There are two color schemes for the same aircraft, the difference being in that one has two red bands around the fuselage. Both are in overall RLM 02 Green-grey.

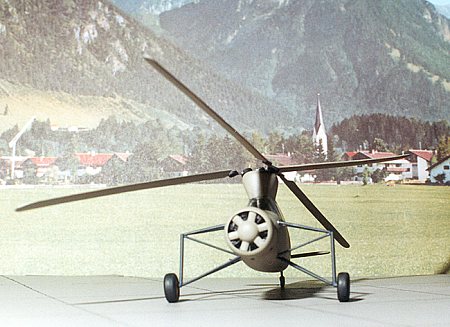

Once the fuselage was together, the engine (which had been painted black and drybrushed with aluminum) was glued into the cowl and the cowl halves (which had been painted RLM 02 on the inside) glued together. This wasn't that fussy, but took some fiddling to get straight. Then the fan for the front was cut off the sprue and test fit. The blades are too long so were gradually filed down bit by bit until the fan fit fully in the front of the engine. The fan was then painted RLM 02 and set aside until final construction.

Next on the list of 'things to do' is the landing gear. Each set of spindly legs is composed of four parts, all of them needing cleanup. I recommend doing as much of this cleanup as possible while the parts are still on the sprue as it prevents possible breakage later. Trust me on this. Assembly of the gear legs is rather daunting on first look. There are just small indentations where the gear legs fit and the kit instructions are pretty vague on what the finished gear looks like as there is no overhead view. I had to do a small amount of trimming of one of the lower V legs to get a good fit. Once all the pieces are in place, it is a very sturdy construct. The addition of the brace from the lower leg to the upper one really adds a lot of strength to it. The key is not to use superglue as regular glue gives one the long drying time needed to manipulate all the bits into place. Once there, another shot of glue will hopefully keep everything good and solid. There are undoubtedly some of you who will wish to shape all the attachment points, but I did not, letting the solvent take care of that for me.

While that was drying, I drilled out the exhaust holes on the engine cowling. Special Hobbies gives you seven small exhaust pipes in resin to put into those holes. To prevent them from falling through, I drilled small pilot holes with a #62 drill bit then took one of my needle files with a broken tip and drilled about halfway through. That left a large enough hole for the resin bit to fit into without falling through. Naturally I didn't cut the resin stacks the same length, but some gentle filing evened them out. They seemed to stick out quite a bit so I went searching for some photos of the aircraft. Naturally, they were not easy to find at all. When I did locate an image, it was obvious that the stacks were VERY short, so they were sanded almost down to the cowling.

Then, through the open area of the cockpit, the missing control stick and the final brace were added. Looking at the instructions, a flat spot needed to be filed in the back under fuselage area to accept the tail wheel. This was done with a small file and the resulting seam filled in.

Then it was time to add in the transparency. I really do not like vacuform transparencies, but do understand that they are not cheap to produce so that is why these short run kits don't have them. I carefully trimmed the canopy and after much fussing around, got a fair fit. Unfortunately, the canopy is too short for the hole it has to fill so I have some rather large gaps in the back and in the front. These were filled with non-fogging superglue. Once that was done, the remaining gaps were filled with putty and smoothed out. As usual, no matter how much I tried, the canopy just wouldn't smooth into the surrounding area. Guess it is a gift!! Final add on were the tailplanes. There are small locating marks on the rear fuselage where these things go.

Once the canopy had been properly treated and masked, it was time to do the painting. The engine was masked and the entire model was painted Aeromaster RLM 02 Grey enamel. When dry, the tail wheel struts and main landing gear struts were painted RLM 66 dark grey, again, an Aeromaster color, using a brush. The kit was then sprayed with a gloss clear in preparation for the decals.

The decals are really quite basic, consisting of insignia, side code letters and a small 'Flettner FL-265v1' marking that goes just above the tailplanes. They are Propagteam decals so are very thin. They were also off register. The white had to be trimmed from the crosses and the swastika decals were unusable. I substituted some from the spares box. They only needed a bit of setting solution and they were done. When dry, the kit was wiped down and sprayed with a clear semi-matte. Then the masking was removed from the clear parts and the rotors were carefully glued into place in the holes that were drilled out for them. Final steps were the main wheels and the engine cooling fan.

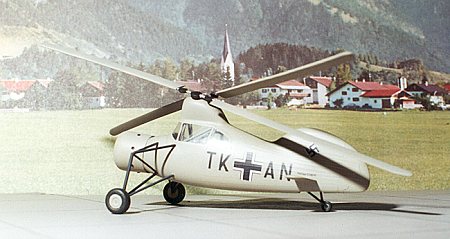

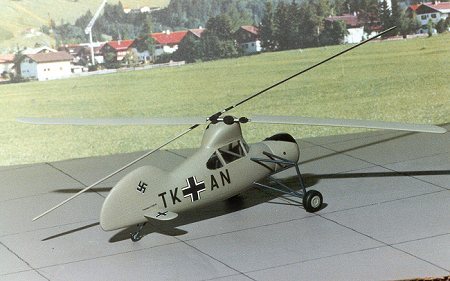

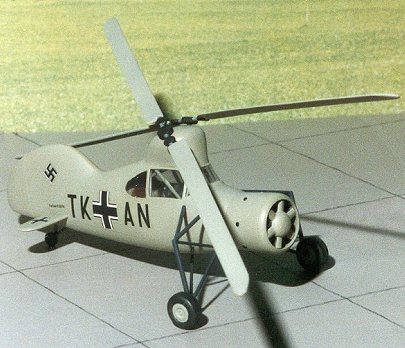

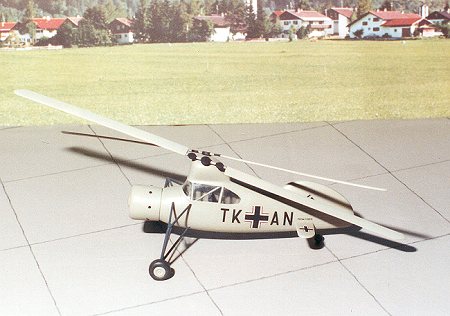

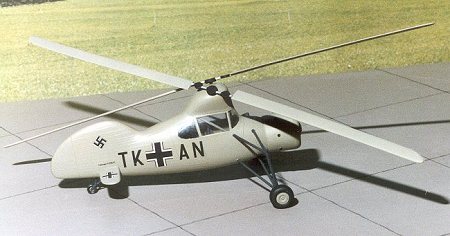

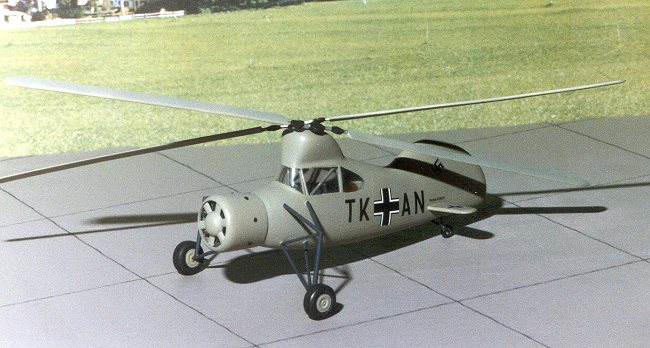

Overall, the kit looks pretty neat. There were no real surprises in construction as I had expected to do some work on it and I did. The resin parts fit much better than I had expected, which was a treat, and the construction of the landing gear wasn't the nightmare that I had originally envisioned. Even the interior bracing was not that difficult, but it was time consuming.

The kit looks very cool and really belies all the work that had to go into it to make it look that way. It will make a very nice addition to my early helicopters collection and is a nice change from the toss-together Bf-109s  that I had been making. Because of the nature of the kit and the semi-complicated interior and landing gear, I suggest that you have a few of these short run kits under your belt before tackling this one.

April 2000
