Zvezda 1/72 Yak-3

KIT #: 7301
PRICE: $13.50 SRP
DECALS: Two options
REVIEWER: Scott Van Aken
NOTES: New tool. Snap fit

HISTORY

The Yakovlev Yak-3 (Russian language: Як-3) was a World War II Soviet fighter aircraft. Robust and easy to maintain, it was much liked by pilots and ground crew alike. It was one of the smallest and lightest major combat fighters fielded by any combatant during the war, and its high power-to-weight ratio gave it excellent performance. It proved a formidable dogfighter. Marcel Albert, the official top-scoring World War II French ace, who flew the Yak in USSR with the Normandie-Niémen Group, considered it a superior aircraft to the P-51D Mustang and the Supermarine Spitfire.  After the war ended, it flew with the French, Yugoslav and Polish Air Forces.

In addition, since 1991, a number of true replica Yak-3s have been newly manufactured by Yakovlev for the warbird market using the original plans and dies. These are powered by Allison V-1710 engines and have the designation Yak-3M. Several of these are airworthy today, mostly in the United States, but also in Germany and Australia. Others have been converted as reproductions instead, to "Yak-3U" status from Yak-11 trainers for private owners, with these aircraft also being popular worldwide.

THE KIT

This is the first aircraft kit in Zvezda's 'My First Model Kit' line. It very much reminds me of the Hobby Boss quick build kits, though it has considerably more parts. I also notice that the kit is produced under license from Yakovlev, so it seems that even the Russians cannot get away from lawyers!

A snap kit it may be, but the kit is quite detailed. A full interior is provided and is molded onto the upper wing section. The wing is a two part construct with the wheel well area being separate. The wells are nicely detailed as well, though the well walls have cause long sink areas on the upper wing that you can probably see in the sprues photo. I also found sink areas on the main gear doors. These can be built raised if one wishes, though there is no display stand. To help fill in the interior, the kit comes with a three piece pilot, though I would have thought a single mold would have been enough to handle this. Two different instrument panels are also provided, one with raised detail and the other to take the decal. The interior also has a separate control stick and rudder pedals as well as a seat.

The prop hub is molded along with the propeller. A backing plate is provided that plugs into the nose section. Landing gear appear to be quite sturdy. The fuselage snap locks into the wing with the lower wheel well insert hiding the connection. Instructions are well done with markings options for two planes. One is the box art plane from Normandie-Niemen in the markings of their top ace, Marcel Albert. This plane is in the two greys scheme. The other is the mount of Semen Rogovoy in 1944. This one is in dark green and very dark grey. The paint call out refers to the darker grey as 'steel', but this is not the correct shade. Markings are well printed and for those who wish, there have been aftermarket sheets for this aircraft.

CONSTRUCTION

You would expect a snap kit to be boom, boom, done. Well, while I am sure that those who just want to have a super fast build will be able to do that, those of us who want a more finished product will use cement and take the time to fill in seams and other things. Honestly, as nicely detailed as this kit is, it would be a shame to simply slam it together and say 'done'.

To get things underway, I cemented the lower wing section into the wing/interior assembly. There is not only a bit of a gap that should be filled, but the major wing assembly has some very large sunken areas just outside the wheel wells that really should be filled. For this purpose, I used my usual filler, which is super glue. This sometimes requires multiple applications, but the result is a nice, hard surface that sands well and does not shrink.

Once that was done, the cockpit was built up and tape used for the harness. I should mention that some of the parts are a very tight fit and I had to use glue to lubricate the join enough to get the parts to fit properly. Once that was done, the fuselage halves were joined, trapping the back part of the spinner in place. This was then given the filler routine and was joined to the wing. Again, an extremely tight fit and one where I had issues getting the forward section of the wing to fit into the curved cut out in the fuselage. In fact, I had to cut away a bit at the fuselage to get the wing to fit down all the way. Then the tailplanes were attached and a few sink areas were filled along with the very prominent seams on the fuselage from the wing fit.

With that done, the canopy was masked and then fit into place in preparation for painting.

COLORS & MARKINGS

Though the image on the side of the box shows the scheme I wanted to use as being a bright green and black camouflage, no Yak-3s were factory painted in these shades. Instead, they were two greys over a light blue (AMT-11/12/7). I used Colourcoats paint for this, but ran out of the AMT-7 so used RLM 78 for the gear doors. This was hand sprayed as the instructions showed a rather loose pattern. I should also mention that the instructions do not show the right side of the fuselage or the right tailplane so one simply has to guess at how the pattern might be for that area.

FINAL BITS

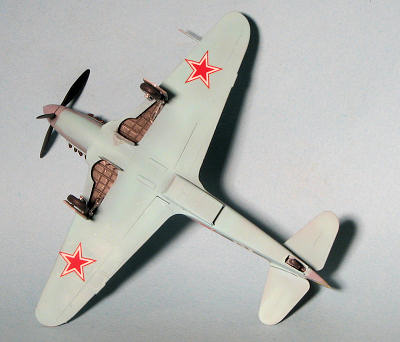

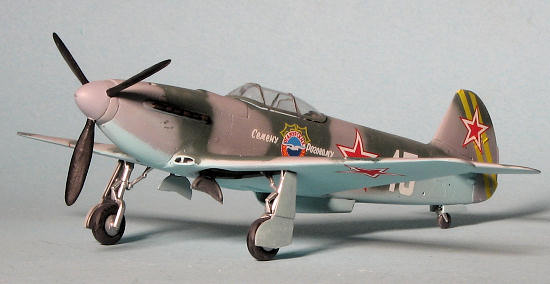

I then returned the kit to the bench to paint the wheel wells and the landing gear. The instructions state that the wells are silver, but from other sources, they are to be grey. I used the same color I used on the cockpit, Tru-Color's NYC Light Grey, which is actually a rather dark grey for this area. This paint is thinned for airbrush use, but is thick enough to where it brush paints beautifully. Landing gear was painted aluminum using Tru-color's Aluminum paint as were the wheel hubs. Landing gear was then installed along with the retraction struts. They fit very well.

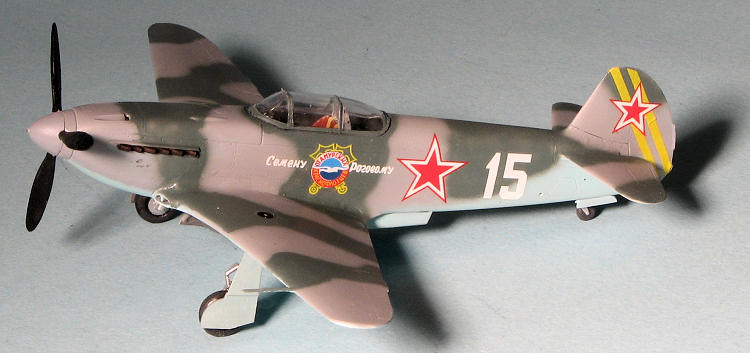

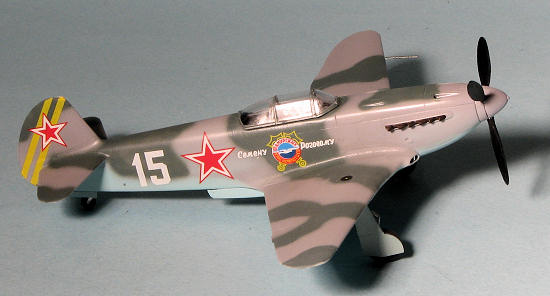

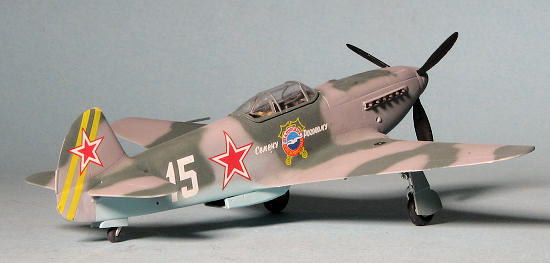

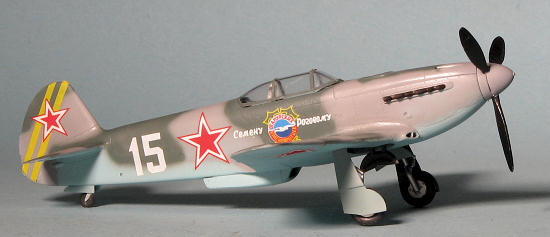

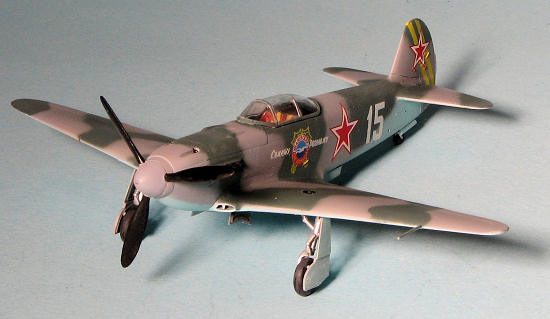

I then gave the kit an overall gloss coat in preparation for the decals. I thought I had some 1/72 Yak-3 decals, but that was not the case so I used the kit markings for Lt. Semen Rogovoy in 1944. The markings came free from the backing in a very short time and stuck well. They also responded well to setting solutions. The yellow used is rather transparent, though the whites were nicely opaque. I did not use any of the stencil markings included. The prop was then attached, again, using glue to help get it in place. I then attached the wheels and gear doors, did a bit of paint touch up and then sprayed on a clear matte using Pledge and Tamiya matte base. The masking was removed and that was it.

CONCLUSIONS

Aside from the sunken in areas and the snap design of the kit, it is very nicely done. I think it is over-engineered for a snap kit with the small parts included, but if you treat it as a standard glue kit, you will be pleased with the results.


REFERENCES

http://en.wikipedia.org/wiki/Yak-3

June 2012

Thanks to www.dragonmodelsusa.com for the preview kit. Get yours at your local shop or have them order it for you.
