MAC 1/72 Spad VII C.1

KIT #

72048

PRICE:

$20.98

DECALS:

three options

REVIEWER:

Dimitriy Levin

NOTES:

Includes etched brass fret

BACKGROUND

Please visit the Preview for a bit of history and a look at what is in the box.

The kit is made up of 36 injected parts in tan-colored hard and somewhat brittle styrene. Surface detail is good with an appropriately subtle fabric effect and finely recessed panel lines. There is a small amount of flash on most parts. MAC is clearly planning multiple versions of the SPAD VII and the kit includes two different radiators, a very nice drum-fed Lewis machine gun (presumably for a British aircraft) and skis (for a Russian version?). Three different windscreens are provided on a small sheet of clear acetate. A small brass photoetch fret contains cockpit details, seat belts, and a few other fiddly bits.

The painting instructions are fairly good with color callouts in generic names and subassembly painting indicated where appropriate. The assembly instructions are lacking however. One problem is that there is no indication of which radiator and windscreen go with which aircraft. I ended up using the parts shown in the painting instructions. Another problem is that the rigging diagram is incorrect -- it shows single flying wires and rigging around the cabane struts is in the wrong place. The boxart is essentially correct on the right side but curiously shows only single flying wires on the left. On the upside, the instructions include fairly detailed line drawings of the aircraft which are helpful in alignment and rigging.

CONSTRUCTION

I built the kit straight from the box with kit decals. Predictably, I began with the cockpit. The floor sits much further forward than the instructions or the sidewall detail in the fuselage suggest so I recommend dry-fitting everything carefully -- things should fit without major sanding. To reproduce wood finishes I use Minwax oil-based wood stains which can be found in any hardware store. The liquid part of the stain doesn't grab styrene very well so the trick is to scoop the goop from the bottom of the tin. After it dries for 10-15 minutes, I use a stiff brush to remove the excess and create a grain-like pattern. The stains dry completely in 24 hours and once dry resist rubbing off. Thus, the floor, the photoetch instrument panel and the seat were painted in Minwax Red Mahogany.

The instrument panel has an odd protrusion above it with a dial etched into it. I was not able to find anything even closely resembling this in any drawings or photos and thus I removed it. The sides of the fuselage were painted in PollyScale Clear Doped Linen with ribbing picked out with Minwax Golden Oak. The overall level of detail in the cockpit is quite good for 1/72 but there is plenty of opportunity for superdetailing. In particular, the sidewalls are completely bare except for some ribbing. The fuselage halves fit well with only a minor amount of filler required. The same could not be said for the radiator, the underside of the engine compartment (molded as a separate piece spanning both fuselage halves), and the cowlings over the cylinder heads. All required a considerable amount of filler.

 The wings are done in the typical maddening short-run fashion with two tiny bumps and an otherwise butt join. The bumps were removed, the holes drilled out, and the wings mounted on steel pins. The wing to fuselage join required a minimal amount of putty. The one-piece tailplane and the rudder were also added at this point, and the elevators were slightly drooped. The ailerons on the top wing were also mobilized for some visual interest. The landing gear assembly butt-joins to the fuselage but gel superglue and patience resulted in a good fit. Attachment of the top wing initially presented a challenge since there are no locating holes for the cabane struts on the fuselage and the SPAD VII had two sets of interplane struts on each side. Examination of the references revealed that all struts are perfectly vertical and I chose to mount both cabane and interplane struts on the upper wing first using gel superglue and a triangle to ensure vertical alignment. The resulting assembly was extremely solid and literally popped into the respective holes on the bottom wing -- definitely one of the easiest top-wing attachments I've ever done.

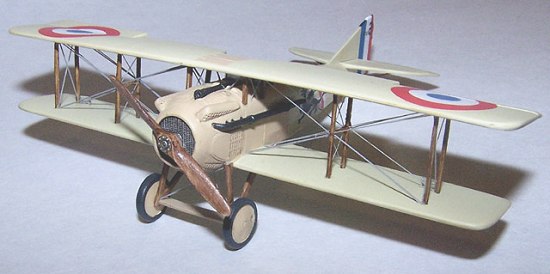

 The kit oddly provides photoetched pieces for cabane strut braces -- the photos clearly show that cables were used. All rigging was done with stretched sprue. This was a tad time-consuming given the small size and the extensive rigging in the kit, including the double flying wires, but I prefer this method to drilling 50 holes in a perfectly good model.

COLORS AND MARKINGS

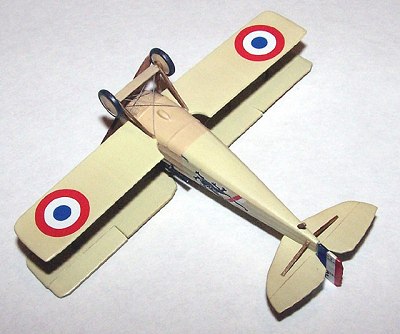

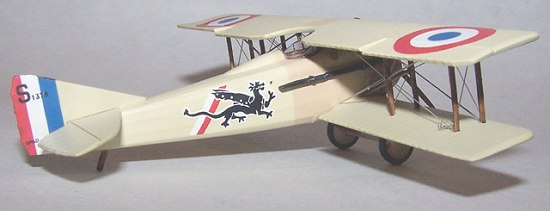

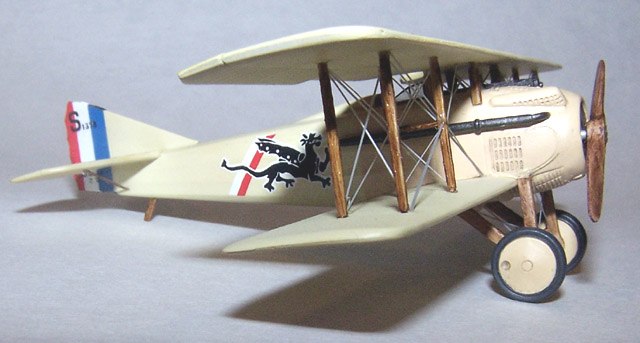

I decided to build the Spa.65 aircraft shown on the box which was painted in varnish linen with a cream nose section. Since PollyScale CDL turned out to have an eerie green tint (think Sky Type S but much lighter) I airbrushed the linen parts with an undercoat of Modelmaster Acryl RLM04. This gave the CDL topcoat a yellowish tint more appropriate for the French varnish linen. A search for what "cream" looked like presented a flurry of contradicting information so I settled on a 50/50 mix of PollyScale USAF Tan and CDL. It's probably wrong but it works for me. :)

 The Vickers machine gun and the exhausts were painted with Gunze water-based Steel over a PollyScale Black undercoat. The radiator grille was painted with PollyScale ATSF Silver and given a black/brown oil wash. The struts and the propeller were painted with a combination of Minwax Golden Oak and Cherry. The model was shot with Future in preparation for decals.

 The thin but strong decals went on largely without problems. I used Microsol only on the rudder and the decals immediately reacted to it. Other decals did not require the use of a setting solution. I build a lot of interwar French aircraft and I have never seen a kit in which rudder decal fit the rudder well. This was no exception, requiring some trimming and touch-up painting. The serial numbers are a separate decal and impressively you can actually read even the finest print. The white in the roundels was sufficiently opaque for my light-colored bird but I suspect it will show the dark background if you decide to make the camouflaged "Revanche IV." The finished model was given a very gentle oil wash and a clearcoat of MM Acryl semigloss.

CONCLUSIONS

The MAC offering begs for a comparison with the old Airfix kit. I have not built the Airfix SPAD but based on my experience with Airfix of that period and on-line reviews, the Airfix kit appears to be better engineered, much easier to build, and significantly cheaper. The MAC kit offers superior detail and attractive decal options and makes for a very nice finished model.

Recommended for intermediate modelers with some short-run experience, good eyesight and fine tweezers.

REFERENCES

www.google.com

Dimitriy Levin

March 2004
