The Northrop RF-5A Freedom Fighter was the dedicated photographic reconnaissance version of the F-5A, developed to provide a relatively inexpensive but capable tactical reconnaissance aircraft for U.S.-aligned air forces. The F-5 itself had been conceived as a lightweight, simple and economical fighter that could be supplied to friendly nations through the U.S. Military Assistance Program. Its combination of good performance, modest operating costs and ease of maintenance made it particularly attractive to smaller air forces.

Development of the RF-5A began in the 1960s in response to the requirement for a daylight tactical reconnaissance aircraft based on the F-5A. The RF-5A featured a distinctive transparent, angular nose containing four KS-92 cameras. These provided several photographic coverage options, including forward oblique and vertical coverage, allowing the aircraft to gather detailed imagery while retaining much of the combat capability of the fighter. The two 20 mm cannon were retained.

Approximately 89 RF-5As were produced by Northrop between 1967 and 1972. The type was exported widely, with aircraft serving with Iran, Turkey, South Vietnam, Thailand, Greece, South Korea, Morocco and Norway. Spain also operated a locally produced reconnaissance derivative, the SRF-5A, manufactured by CASA.

The RF-5A saw particularly interesting service with several operators. Norway received 16 aircraft, which were operated initially by No. 717 Squadron in the reconnaissance role. They replaced the older RF-84F Thunderflash and remained in Norwegian service until 2000. Iran also received RF-5As, with some aircraft being involved in reconnaissance operations along the Soviet border during the Cold War.

Greece was another important operator. The Hellenic Air Force received 16 RF-5As, which were assigned to 349 Squadron at Thessaloniki. In time, a number of them were operated without their reconnaissance cameras installed and were consequently used essentially as conventional F-5A fighters, retaining their cannon armament.

Although technologically simple by modern standards, the RF-5A was an effective reconnaissance platform. Its small size, high speed and low operating cost made it well suited to tactical photographic missions, while its F-5A heritage gave it the ability to defend itself and perform secondary combat duties.

Kinetic first entered the F-5A family in 2012 with a completely new-tool 1/48 scale kit of the Freedom Fighter, finally giving modelers a modern mainstream kit of the first-generation F-5s. Although the kit was subsequently released in several different editions, covering practically all of the major F-5A versions, the reconnaissance version was the notable omission. That changed in 2023, when Kinetic finally released the RF-5A.

I was therefore particularly happy when I recently spotted a copy of this kit on the website of one of my now-beloved Greek online hobby shops. At a price I simply couldn't refuse, I immediately placed an order, and just a couple of days later the kit arrived, packed in the shop's usual excellent protective packaging. The kit comes in a medium-sized, side-opening box, which is quite flimsy. The box artwork is nicely printed, featuring a beautiful painting by artist Antonis Karidis of a Greek RF-5A in Vietnam-style camouflage, gracefully flying overhead.

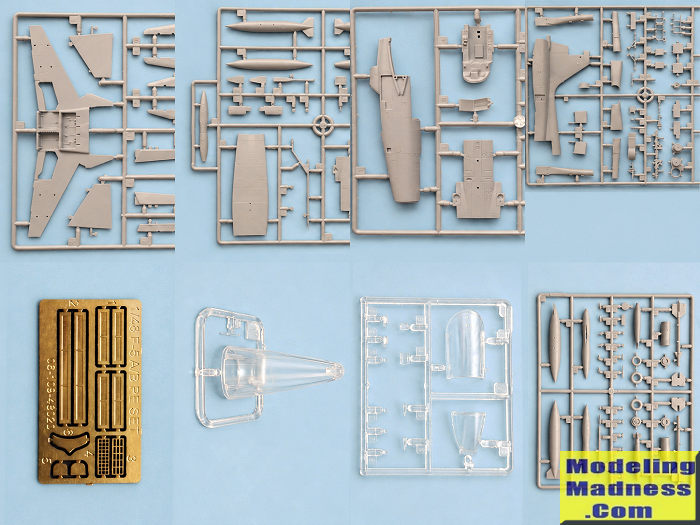

Upon opening the box, I was greeted by approximately 160 light-gray plastic parts, very neatly arranged on no fewer than six sprues, with one of them duplicated. The molding is good, with nice external detail and, apart from some mold separation lines, no flash apparent on the parts examined. Panel lines are engraved throughout and appear generally correct, although I will leave the final word on accuracy to the F-5 Experten.

The cockpit is well done and provides a good representation of the real aircraft. The instrument panel and side consoles feature raised instruments, switches and other details, although somewhat on the soft side, while the ejection seat is also quite well rendered. A good-looking boarding ladder is also provided, which is a very welcome addition if you want to give the model a more interesting operational appearance. The landing gear is also well done, with good detail throughout, and the same can be said for the airbrake housing, which also features some convincing molded-on detail.

Another feature I particularly liked is the fact that Kinetic provides full intake ducting. This extends all the way back to the compressor faces, meaning that there is no unpleasant empty space visible inside the intakes. The exhausts are also nicely rendered and have sufficient depth to look convincing once assembled and painted. As our Editor has pointed out in his F-5A preview, there will be an inevitable seam between the duct halves that has to be addressed.

The kit also provides separate flaps, slats and rudder, giving the modeler the option of displaying the aircraft in a more dynamic configuration. That said, the F-5 would normally have its flight-control surfaces in a neutral position when parked, with the airbrake being the notable exception: it would droop soon after the engines were shut down as hydraulic pressure was lost.

I also like the fact that Kinetic seems to have done some good research on the aircraft. The kit provides different nose-gear struts and auxiliary air intakes, including the variations found on different versions. This is a nice touch and shows that the designers have paid attention to differences between individual operators and aircraft.

A good selection of external stores is provided, including two styles of centerline fuel tanks, wing tanks and the distinctive wingtip tanks. A pair of Sidewinders is also included and can be fitted on the wingtips instead of the tip tanks.

One particularly interesting detail concerns the aforementioned wingtip tanks. The distinctive, almost Coke-shaped tanks are paired and had apparently been incorrectly molded as identical parts (two port-side ones) in some of Kinetic's earlier F-5 releases. Kinetic has addressed this here by molding a starboard-side tank on one of the sprues. It is a small but welcome correction and another indication that the company has good feedback and has acted accordingly.

The transparencies are nicely done and crystal clear. Particularly interesting is the complete clear nose section, which allows the modeler to attach the entire nose as a transparent part and simply mask the individual camera windows.

A small PE fret is also provided, containing a few detailing parts, including some fuselage louvers and other small details. The fret also includes formation lights; however, I am not entirely sure whether these are actually applicable to any version of the F-5 reconnaissance aircraft represented by this kit. It would have been a nice addition if the PE fret had included some seat belts, which are notably missing from the kit.

The instructions are adequately presented and come in the form of a 16-page, black-and-white printed booklet. They include a short history of the aircraft, a sprue map, a color chart, with the construction sequence spread over 13 steps. Some color callouts are provided throughout the construction, although not for every component. Although the construction sequence is straightforward and generally easy to follow, I believe the relatively complex construction should have been broken down into more steps, particularly in some of the busier areas.

Overall, the instructions are perfectly usable, but I do feel that a more comprehensive and better-designed instruction booklet would have added considerably to the overall presentation of this very nice kit. The excellent, clear and highly detailed instructions found in some of the more recent Special Hobby kits are a good example of what could have been achieved here.

Four nice basic schemes representing aircraft from three nations are provided: two Spanish, one Greek, and one Norwegian. By mixing and matching the different serial numbers, the modeler can create no fewer than 22 different aircraft. Color references are provided for AMMO MIG, Vallejo, Mr. Color, Tamiya, Humbrol, as well as in generic form, giving the modeler plenty of options when choosing paints.

The decal sheet is impressively printed, with sharp colors, excellent registration, and a high level of detail. The decals should perform very well during application. All the basic maintenance markings are also included, helping to achieve a convincing and realistic overall appearance.

The instructions have you begin with the cockpit, followed by the nose-gear leg and its attachment to the nose-gear bay. This assembly is then trapped between the two fuselage halves, followed by installation of the distinctive RF-5A nose. The canopy is shown as being installed at this stage, but you may leave it off until later in the build if desired.

One point worth keeping in mind is the question of nose weight. The instructions do not mention adding any ballast, and I am not certain whether the F-5A requires weight in the nose to prevent it from becoming a tail-sitter. This is therefore something I would advise checking before starting construction. If there is any doubt, I would rather add a little weight and be safe than sorry.

The rear fuselage is then assembled, followed by the various surrounding panels. Some of these parts are specific to the Norwegian version, again demonstrating Kinetic's attention to the different configurations operated by individual users. The rudder is also attached at this stage.

The wings are assembled next, with the option of displaying the separate flaps and slats in different positions. The completed wing assembly is then attached to the rear fuselage, together with the aft ventral flat fuselage section, with the entire rear-fuselage subassembly subsequently mated with the front fuselage assembly.

This is probably the area where the modeler should take the most care. With the fuselage divided into several major components, careful alignment and test-fitting will be essential to achieve a clean and properly aligned final result. The landing gear follows, together with the external stores, bringing the construction to an end.

This is certainly not an overly simple build. The number of parts and, particularly, the way the fuselage is divided into several sections introduce a good degree of complexity. However, it is nothing that a reasonably experienced modeler should not be able to handle with patience.

It is particularly pleasing that we finally have a modern 1/48 RF-5A. Kinetic's decision to expand its F-5A family with this long-awaited variant is certainly welcome.

The parts look accurate to my eye, the molding is good, the engraved panel lines are clean, and the overall level of detail is very good, with the complete intake ducting being the icing on the cake. I also appreciate the attention given to the different versions. The alternative nose-gear struts, auxiliary intakes and various panels demonstrate that Kinetic has not simply produced a generic RF-5A, but has made an effort to cater for differences between operators.

The clear parts are nicely done, while the decals are beautifully printed and should be a pleasure to use. The range of marking possibilities is also excellent. The instructions are adequate and certainly usable, but this is one area that could be improved and would make the kit even more desirable. A better instruction booklet, with more construction steps and complete color call-outs throughout the build, would make the model considerably easier to follow, particularly for less experienced modelers.

Construction is expected to present a degree of challenge, as the multiple fuselage sections require careful alignment to avoid fit issues. For this reason, I would not recommend the kit to absolute beginners, although experienced modelers should have no difficulty.

Coupled with the very reasonable price I paid for it, I think this is a kit well worth tackling. It gives us a long-awaited reconnaissance Freedom Fighter in 1/48 scale, with good detail, excellent molding and attractive marking options. Highly recommended for anyone with an interest in the F-5 family — and especially for those of us who have been waiting for the RF-5A!

Happy Modeling!

Spiros Pendedekas

4 September 2026
