Modelsvit 1/72 Myasishchev M-17 'Mystic A'
KIT #: 72024
PRICE: $
DECALS: Two options
REVIEWER: John Miller
NOTES: Short run kit

HISTORY

In the 1950’s and 60’s the U.S. instituted several intelligence programs that utilized high-altitude reconnaissance balloons. Released from friendly territory, the balloons would ascend into the jet stream and thence over the Soviet Union and the People’s Republic of China. To combat the balloons Myasishchev proposed Subject 34, a single seat, turbojet-powered, twin-boom, high-aspect-ratio aircraft nicknamed “Chaika”: Russian for Seagull due to the pronounced anhedral of it’s wings. Before Subject 34 could be developed into operational hardware, the balloon programs were terminated due to the success of the Keyhole reconnaissance satellites of the Corona program and the emergence of the Lockheed A-12.

Development of the Chaika continued with the prototype being completed in 1978. The aircraft was lost the same year in an unfortunate incident wherein the pilot pulled the aircraft into the air during a fast taxi in order to avoid a snow bank. The aircraft then struck a hillside and was destroyed.

A reconnaissance version of the Chaika was developed as the M-17 Stratosphera (NATO reporting name Mystic-A). The M-17 featured a revised airframe that included straight tapered wings, a shortened fuselage pod, and an un-reheated Kolesov RD-36-51 turbojet engine. The prototype M-17, serial number 17401, flew for the first time on May 26th, 1982. Eight years later 17401 with Vladimir V. Arkhipenko at the controls set an altitude record of 21,830 m (71,620 ft) for class C-1i aircraft (landplanes with a take-off weight 16 to 20 tons). Luckily, this historic, record setting aircraft is one of the decal options provided in the kit.

Before it’s retirement in 1987, the M-17 Mystic-A set a total of 12 FAI world records, 5 of which still stand. The final development of the M-17 design, the M-55 Geophysica, first flew in 1988 and reportedly continued in service as a research platform into the late 1990’s.

THE KIT

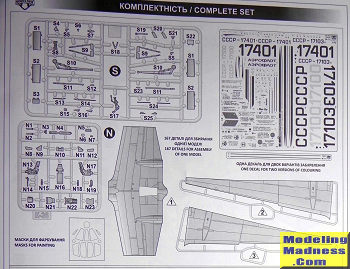

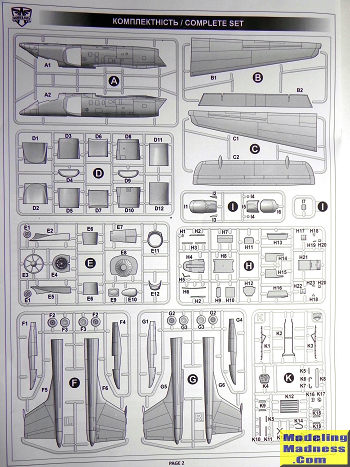

I saw this kit while patrolling my local hobby shop and knew immediately that it was coming home with me. Part P-38, part Bat Plane, I half expected to find a figure of Bruce Wayne inside the box. What I found was 167 pieces of light grey plastic that at first look revealed molding and engraved details that ranged from good to fair.

The plastic is easy to work with but seems a bit brittle. A little extra care should be taken when removing parts from the sprues. Engraved details are nicely done for the most part and on par with Hasegawa in a some areas. However, there are more than a few lines and details that are uneven or incomplete and will need to be cleaned up with files and a scriber before painting.

Overall the fit of the parts is good but there will be some adjustments and a fair amount of test fitting required. You should also plan to have a few sanding sticks at the ready and maybe a shop-vac: she’s gonna’ be a dust-maker.

What’s impressive about this model beyond the size (more on that later) is the fidelity of the molding evident on some of the smaller parts. The ~25 parts (yea, you read that right) that comprise the ejection seat are beautifully cast. Ditto that for the 19 parts that make up the boarding ladder--really. Only the clear canopy parts leave a bit to be desired as they are somewhat distorted with a rough surface texture. Parts are provided for both opened and closed options. I suspect the rough surface texture will respond to a bit of polishing with Novus-2 and -3 and a quick dip in Future floor polish. The canopies are not a deal breaker but they will require some patience to polish out.

One very nice feature of the kit are the decals. As previously mentioned, markings are provided for aircraft #17401: the record-breaker as well as for aircraft #17103, an airframe that’s currently on display at the Monino Air Force Museum near Moscow. The decals (by Modelsvit) are in perfect register with color intensities that seem appropriate. They feature very little carrier film and appear to be very thin. How they respond to water and decal solvent remains to be determined but initial impressions are very positive.

Lastly, size: did I mention this is a big model? Measuring a little over 22 inches tip to tip and ~1 ft. nose to rudder, it’s going to take up a lot of shelf space so be forewarned.

CONCLUSIONS

This kit is a bit of a mixed bag but definitely worth tackling just for the “cool” factor. It’s going to take a little extra effort, as removal of some of the more fragile parts should be done carefully: perhaps with a micro-saw. Likewise some work will be required to assure a good fit of all the major pieces. The lower wing parts in particular require slight re-shaping to ensure a proper fit. Other than that, the kit should come together nicely and I highly recommend it to anyone with a little experience building limited run kits.

For more pictures of the Modelsvit M-17 and an in-progress build report visit this link.

REFERENCES

https://en.wikipedia.org/wiki/Myasishchev_M-55#cite_note-10

John Miller

June 2017
