American Racing Miniatures 1/25 1928 Stutz 'Blackhawk'
KIT #: 25005
PRICE: $75.00 SRP
DECALS: One option
REVIEWER: Mark Hiott
NOTES: Resin & metal

HISTORY

Frank Lockhart’s setting  the 91 cubic inch class land speed record  of 171.02 mph with his modified Miller 91 rear drive ultimately whetted his appetite for further speed records.  Working with the brothers John and Zenas Weisel,as well as Myron Stevens, Floyd “Pop” Dreyer, and with financial backing of Fred Moscovics, President of The Stutz  Motorcar Company.  Lockhart began the design and construction of the Black Hawk int he Stutz factory building in Indianapolis with the intention  of setting  the world’s land speed.

When the Black Hawk emerged it was completely antithetical to the LSR cars  of the day.  It was  about  half the usual size, and rather than a large number of massive engines, it relied on a small engine that was built from the blocks of two Miller 91s on a common crankcase. Upon completion, the car was transported to Ormond Beach, Florida(near Daytona) and speed trials commenced.  After a few abortive attempts and a wreck in February of 1928 the car went back to Indianapolis, was repaired and returned to Ormond Beach on April 20th, 1928  to try again.  With few days  of runs to sort the car out, Lockhart  was  ready  for a serious attempt on Wednesday April 25th.  The first runs  North and  South warmed up the car and  at 7:32AM he made a third run south  averaging 203.5mph. On the required return trip, 700 feet short of the timing wires, his right rear tire blew. The car skidded, bounced, and flipped before coming  to rest 1000  feet down  the course after  ejecting  Lockhart’s  lifeless  body.  AAA estimated he  was  traveling about  220 mph when  the right wheel tire blew.  At the  end  of the  first warm-up  run, Lockhart  locked  the  right rear  tire and skidded the car to a stop. It is thought  that the skid caused the tire to be cut, weakening the casing.  Because the run wasn’t completed Frank  never actually  set  the LSR overall,  but he did set  the American  National  Class D record  (122-181cubic inches) and it stood for 45 years.

THE KIT

 The kit consists of a 2 part resin body, axles and wheel fairings with most of the smaller parts made out of white metal. There are wires cast into the resin crossbars for the suspension which should make for a sturdy model. The instructions are 8 pages with 12 construction steps. They are well illustrated with in-progress photos of the kit. The parts layout photos are a nice touch. "Stutz Blackhawk" decals are also included.

CONSTRUCTION

As with most auto kits, you start with the interior. Not much here really, but it includes everything that was on the real thing. I attached the pedals, transmission, shifter lever and brake level and painted the cockpit as a whole. After painting, the seal was attached. Test fit the lower pan and make sure you don't attach the seal too far back. It should just touch the rear bulkhead.

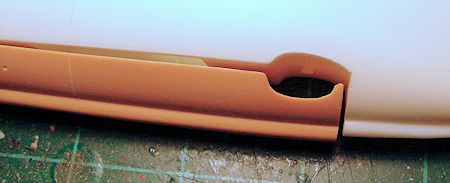

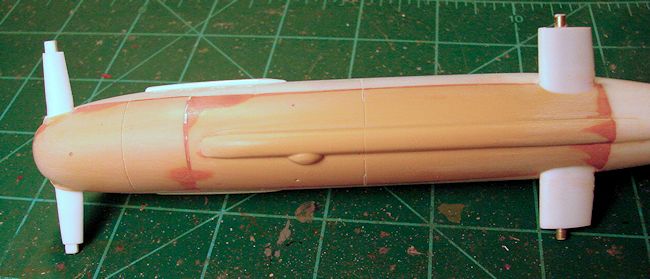

With the cockpit finished, I attached the belly pan. It was here that I ran into the only fit problems with the kit. The lower pan was too short. I could either line up the rear axle opening or the nose. I decided to cut the lower pan in an area that had no surface detail, attach the pan and then fill the resulting gap. The results were better then I expected. A bit of filler was required to make everything smooth.

When attaching the axles, I found that careful test fitting should be done before joining the upper body and the lower pan. They mount to pins in the body and you want a good fit with these parts. I used slow setting super glue to attach the axles and then set it up on the wheel fairings to make sure everything was level. The openings around the axles are normal, do not try to fill them in!

Once the axles were solid, I attached the front steering linkage. Pay close attention when installing the linkage bullet ends. They are different, front to rear, and the instructions point this out. I also attached the intercoolers at this point. I attached the tires to the fairings and then to the body after painting.



COLORS & MARKINGS

Painting this one is pretty easy; white and silver. The cockpit was painted MM Enamel Aluminum with white details. The seat was painted Folk Art Acrylic Leather.

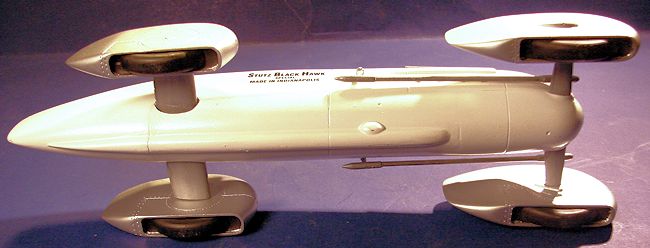

The body and axles were first assembled then painted with Krylon Gray primer and the shot with Krylon Gloss White. The body was then masked and the axles painted with MM Aluminum. This paint was also used on the fairings and steering linkage.

CONCLUSIONS

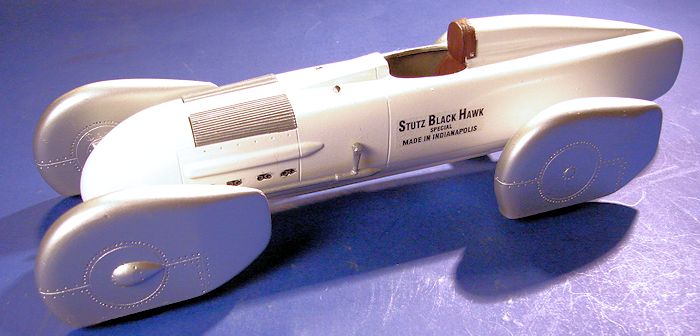

A simple multimedia kit that most anyone could handle. A small parts count with reasonable fit, this would make an excellent first multimedia kit for anyone.

REFERENCES

Wikipedia for the history

Photos from the internet

http://americanracingminiatures.com/

Mark Hiott

November 2015
