Academy 1/72 F6F-3/5 Hellcat
KIT #: 2121
PRICE: £2.98
DECALS: Two options
REVIEWER: Fernando Rolandelli
NOTES:

HISTORY

Notes about Hellcat’s history would be almost as superfluous as about 109’s, and their incredible kill-loss ratio well known. In Royal Navy’s Fleet Air Arm they started to get into action from Operation “Dragoon” (the invasion of the South of France) onwards (excluding some early service in the spotter role during the D-Day, by 800 Sqn aboard HMS Emperor, which took them to Norway and the Mediterranean), usually sharing escort and flak-busting tasks with Martlet/Wildcats and Corsairs, while Seafires acted as CAPs over the Fleet.

In the East Hellcats and Corsairs were employed in offensive operations by both the Eastern Fleet/East Indies Fleet and the British Pacific Fleet later, until the end, having their share of victories in the rare occasions in which there was any air combat. Though the Hellcats were considered safer and more reassuring to the average pilot, there are some reports implying that Corsairs were preferred to the Grumman’s (for instance, Royal Marines’ ace Ronnie Hay), and in fact HMS Indomitable was the only Fleet carrier in the BPF to embark Hellcats, those in 1839 and 1844 Sqns, most of them were embarked on CVEs serving in the Fleet train.

MAM reports that during a spell of no-flying due to bad weather conditions, Sub Lt Campbell and his crew asked for and received permission to repaint JV104 in Gloss Black. This finish improved considerable cruise performance and fuel consumption.

THE KIT

Academy’s Hellcat is a good kit, simple and a bit thick on small details, but generally accurate and well-behaved. The fin/rudder profile is completely wrong at the top, but this can be fixed. The partitions of the cowling front intake are not in a completely accurate position/angle. Interior detail is scarce and inaccurate, so an aftermarket set or some scratchbuilding are mandatory, but that’s the norm in 1/72nd scale kits. Wheel wells should be boxed to some extent, and a vacuform canopy is advised. Decals are not great, but usable. But that’s it, and you should be left with a fairly good looking F6F.

I felt the kit “as is” was a bit undistinguished, so I decided early to throw a complete detailing set by Verlinden. This included interior parts in resin and PE, a complete gun bay in PE (guns in resin) and a ventral tank. To show the interior parts, a Squadron vac canopy was added for good measure.

Very soon I realized the idea of the Verlinden set was a mistake. The interior pieces were far too big, to the point of being unusable; the instrument panel included the pedestal console, which should be separate. The PE parts were of the thickness of armor plate and almost as pliable. The gun butts were very bulky and overscale. All in all, a set to be avoided, exception made for the PE parts for closing the wheel wells, which, nevertheless were very difficult to get fit. Weird that the D&S book warmly recommends it.

After all this frustration, I resorted to an Aires interior set. Man, this is all what you expect from such a set. The sidewalls and floor are correct, and the instrument panel fits as a glove. The seat is still somewhat poor, but passable; the only option would have been a folding PE seat.

CONSTRUCTION

 Cockpit

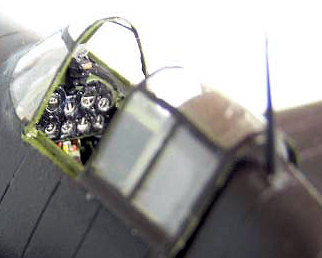

 Taking due care, sidewalls fit really well, and the floor/bulkhead combo snaps fit. The usually scary instrument panel can be safely attached to the fuselage half you have chosen as your working one. I added some wiring and some levers to the console. After some deliberation, I painted the cockpit Interior Green (FS 34151); some sources state it being Bronze Green, others maintain that only the first 100 F6F-3 had the latter. Levers, buttons and other detail were painted as per my references.

 Airframe

 The front engine cylinder row was another addition from the Verlinden set, but, if you are willing to scratchbuild the two magnetos out of some plastic rod, there is little to choose comparing it to the kit’s. The set also provides the cowling flaps but I was through with the whole set and did not even consider the idea. The interior of the cowling was painted FS 36440, mimicking Grumman Grey. The kit’s rear view windows were used, and fixed before the fuselage halves were glued together; some sanding and polishing from the outside was necessary. I usually replace the hood by a vacuformed piece, but keep the windshield, but in this case I decided to have a go with the vac one, which looked much more to scale, and it fitted very well with minimal fuss. I dropped the idea of adding the internal bullet proof windscreen.

The Verlinden set provides a part to address the problems in the top of the fin contour, but I was by that time completely disillusioned about it and just built up the area with a small plastic edge and cyano, adding bit by bit and sanding to shape. Rudder can be fixed just by sanding.

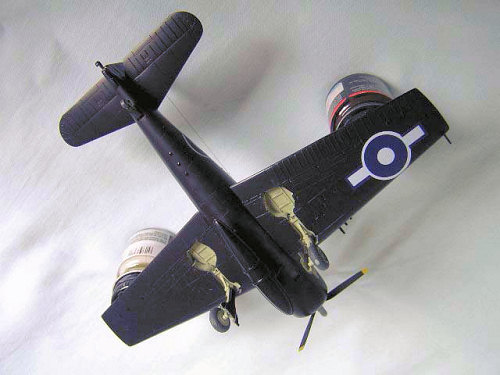

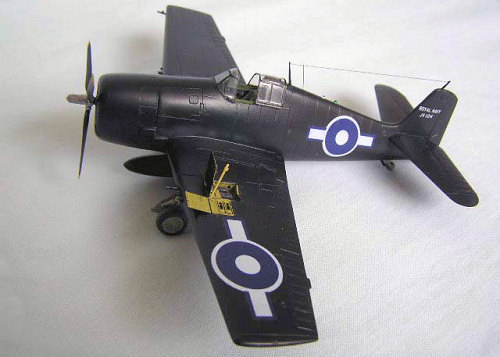

In the wings, I used the provided wheel well blanking PE part, which conformed to the well’s contours after much persuasion (these Bronze Age PE parts…) as well as the provided hook for the leg. The wells, doors and legs were painted Sky Type S; the ones in American planes were usually painted the underside color. I had already drilled the hole for the gun bay, so it had to go, but I had a pretty rough time to have it fit. The bay and the doors themselves are okay, but the guns are too big and the ammo boxes’ lids seem to have been patterned after the ones in the mixed battery -3N. Anyway, the ammo belts provided do not reach the breeches, so a somewhat untidy (and utterly inaccurate) extension had to be made. The “spider lock” was added to the main lid (the mechanism a PE part and the braces stretched sprue) and it looks great. The bay was painted YZC, masked and the bits and pieces were added at the last moment. I have no idea of how the mechanism to lock the lid works (other than the spider lock), but the “brace to nowhere” is very prominent in pictures, so I added it.

Gun tubes protrude too much and were therefore trimmed, and the undercarriage received some hydraulic lines. Rockets are not carried and I left the bomb racks out. I had planned to install the Verlinden drop tank, but in the event I went for the one in the kit, thinning out the braces and providing the front ones which were not included.

COLORS AND MARKINGS

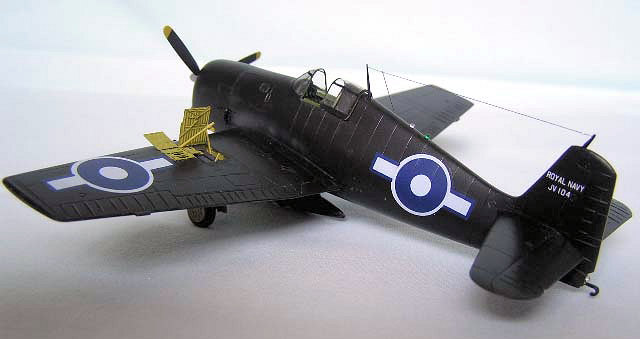

 Well, I had bought SAMI’s generic BPF decal sheet, so I was eager to give them a go. I also wanted to take the opportunity of modeling JV104 in 1/72nd, as I consider that the mass of a 1/48th Hellcat in Black would be too disturbing.

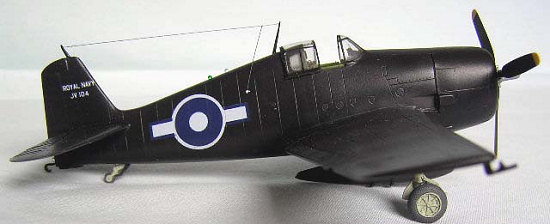

Painting was achieved in several sessions, using Xtracrylix paints. I primed everything with Alclad Grey Primer and started “preshading” over the panel lines, then filling up “mottle fashion” the inside of the panels. How do you provide “interest” (nuances in color from panel to panel) in an overall Black aircraft? I mean, actually painting it Black and not some sort of dark grey; adding to that, Black always looks too bluish when mixed with any amount of White or Light Grey. All this without overdoing the effect in 1/72nd, and considering this was, if not exactly a VIP machine, one obviously well cared for (both pilot and crew would want to make their point in repainting the aircraft, and it should have been kept clean and glossy for that) Nuances were obtained by further “mottling” with Black mixed with a little Red (much of it and it turns a muddy Brown) but no “masked effect” was done because it would have been too harsh. Wheel wells, legs and the insides of doors were kept in the original Sky Type S, this having originally been a Temperate Sea Scheme painted machine. Exhaust stains were made by mixing Black with Dark Earth, which provides a nice, warm grey. Instead of chipping, very unlikely in this machine, I painted small patches of a strong Clear Flat (I used Aeromaster’s), which alters the Gloss Black to incredible levels, to the point that you very easily overdo the effect (I mixed some Xtracrylix Flat in it –this one is very satin-like)

Decals would be pretty straightforward, but for the need of “composing” the serial number from extremely small (4 scale inches) individual numbers. Insignia should, also, but agreeing on the exact size was problematical. I settled over 48 inches on wings and 40 inches on the fuselage (48 inches insignia were recommended overall, but I have seen a picture of JV104 and the fuselage ones did not seem so imposing) Over a nice glossy clear cote, they performed flawlessly. The Roundel Blue is just a bit misaligned; I had to cut a thin strip of White protruding one of the bars.

CONCLUSIONS

 This was a nice “short-term” project. In the end, it came up to an interesting model without the need of the open gun bay, which was the source of most of the trouble. The Aires set works wonderfully; I have seldom seen a PE instrument panel fit like that. I was also impressed with the fit of the Squadron windscreen. The SAMI decals are also very good, though the way they are issued you will run out of insignias much before your code and serial numbers are used up; I think a second sheet of the former would be a nice idea.

REFERENCES

 -         “VJ-Special British Pacific Fleet”, Model Aircraft Monthly Vol. 4 Iss 8 and 9, August and September, 2005.

-         “Fleet Air Arm. British Carrier Aviation 1939-1945”, Ron Mackay, Squadron Signal Publications.

-         “Britain’s Fleet Air Arm In World War II”, Ron Mackay, Schiffer Military History Books

-         “British Naval Aviation. The Fleet Air Arm, 1917-1990”, Ray Sturtivant, Naval Institute Press.

July 2007

Fernando Rolanelli
