Planet Models 1/72 Martin-Baker MB.2

KIT #: 252
PRICE: $24.99  ($61.95 SRP)
DECALS: options
REVIEWER: Scott Van Aken
NOTES: resin kit with vacuform canopy


The Martin-Baker MB2 was a British private-venture fighter prototype based on a simple basic structure that had been developed in the earlier MB1 civil aircraft. Although briefly evaluated as a fighter by the Royal Air Force, the MB2 was limited in design potential and never entered series production.

James Martin, broadly responding to Specification F.5/34 for a fighter using an air-cooled engine for hot climates, designed a fighter using the simple basic structure employed and developed in his earlier MB1. Constructed of steel tubing, the MB2 incorporated many detailed improvements which further simplified production as well as repair and maintenance. Powered by a special Napier Dagger III HIM 24-cylinder H-type engine of 805 nominal bhp, but capable of operation at 13 lb boost to give over 1,000 hp for takeoff, driving a fixed-pitch, two-blade propeller, the MB2 was capable of 300+ mph (480 km/h) speeds "on paper." The undercarriage was fixed but cleanly faired in two trouser-type fairings, the port one carrying the oil-cooler. A retractable undercarriage to improve performance was "in the works" when the design was abandoned.

The fuselage lines were square cut and exceptionally clean, with almost constant depth from nose to tail. An unusual feature, at that time, was that the fuselage was slightly longer than the wingspan, a feature retained in later Martin-Baker designs, which contributed to good stability and control in yaw. The MB2 was the first British fighter to carry eight wing-mounted .303 Browning machine guns.

One of the hallmarks of Martin-Baker designs was the simple but efficient installation of main systems. The clean and orderly cockpit was set well back, allowing a good view downwards behind the wing. A crash post was fitted, which automatically extended to minimise structure damage and injury to the pilot in the event of a nose-over landing. A small, tapered tailplane was mounted on the top of the fuselage well forward of the stern post, while the fin and rudder combination was roughly triangular in side elevation. This arrangement placed most of the effective rudder area below the tailplane, thus providing an adequate balance to the keel surface and assuring good recovery from spins. In initial MB2 configurations, there was no fin and the rudder was mounted on the fuselage but lateral stability was unsatisfactory, with the fixed fin added later.

The MB2 was first flown by Captain Valentine Baker at Harwell on 3 August 1938 and initially tested with markings M-B-1 (G-AEZD not carried). "The Aeroplane" stated, "in spite of its fixed undercarriage, the MB2 had a performance as good as that of contemporary fighters and a capacity for quick and cheap production by the simplicity of its structure and easy assembly". Repair and maintenance were also simple, and these factors might have influenced the authorities towards putting the MB2 into production when the country's fighter strength was disproportionately low.

The MB.2 was subsequently acquired by the Air Ministry in June 1939 as P9594 and returned to A&AEE for a second assessment after modifications were made to tail control surfaces. The MB2 also spent some time at the AFDU, RAF Northolt, before returning to Martin-Baker late in 1939, where it still survived in December 1941, although probably flown little or not at all after the outbreak of war.

Around this time Martin was considering various other ideas, both for complete aircraft and for certain components. The aircraft designs included a twin-engined 12-gun fighter and a twin-engined multi-seat transport, both featuring the finless layout of the early MB2 airframe. In the fighter design, the trailing edge of the engine nacelles provided additional vertical control surfaces, and also incorporated the patented ducting system evolved by Martin to reduce drag caused by the engine exhaust. The most promising of the concepts became the MB 3 which would eventually spawn the superlative MB 5 prototype.


Planet Models is, I believe, part of the CMK family of products. They started out doing Luft '46 and have expanded into other venues. They are not inexpensive as you can see by the SRP of this admittedly rather small kit. However, if you can find one on sale or if funds are not that tight, you will find a vey nicely molded resin kit that is provided in a segregated polyethylene bag.

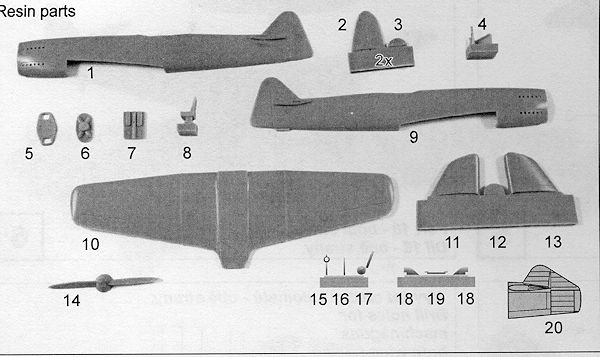

This one comes with two fuselage halves complete with cockpit sidewall detail. The wing is a single molding onto which the two wheel pants are attached. Only enough wheel is provided that juts out of the gear pants. The cockpit consists of a floor, seat, stick and rudder pedals. Belts would have been nice, even as decals. There are separate  tail planes and to do the early and mid versions some saw work will be needed. For the fin-less early version the fin/rudder will need to be cut away. For the mid section with the smaller fin, the fusleage will need to be cut  and the new tail added on. The instructions would have you use the replacement tail to do the fin-less version. Most of us will do the version that is easiest.

There is a prop and spinner as well as a small intake on both sides of the engine. Two nicely molded vacuform canopies and a small tail wheel complete the bits.

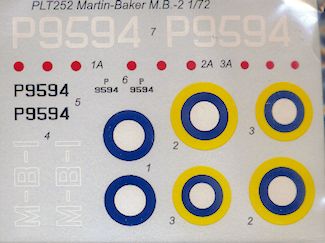

Instructions are the photo variety that have eight construction steps, six of which are photos. The other two are drawings that show how to do the tail variants and where to drill holes for the wing guns. No interior painting information is provided so I am unsure if this should be unpainted metal or British Interior Green. Regardless of tail configuration, the markings are the same with the aircraft in overall Nivo with bare aluminum walkways on the wing and bare aluminum around the engine exhausts. Based on past experience, the decals are superb and very thin so caution will be required during application. The color and markings diagram is in full color. No paint references are provided due to the simple nature of the colors used.

Whether you are into prototypes or just like something a bit different from the norm, this is a kit you should consider. Due to the fairly simple construction, it is one that would be perfect for a first resin kit.

March 2013

Thanks to me for providing this one.
