Dragon 1/35 M16 Multiple Gun Motor Carriage
| KIT #: || 6381 |
| PRICE: || $ |
| DECALS: || Six Options |
| REVIEWER: || Scott Van Aken |
| NOTES: || Smart Kit |
Between the world wars, the US Army sought to improve the tactical mobility of its forces. With the goal of finding a high-mobility infantry vehicle, the Ordnance Department had evaluated the half-track design by testing French Citroën-Kégresse vehicles. The White Motor Company produced a prototype half track using their own chassis and the body of the M3 Scout Car.
The design, using as many commercial components as possible to improve reliability and speed production, was standardized in 1940 and built by the Autocar Company, Diamond T Motor Company, and the White Company.
The M3 was the larger counterpart to the M2 Half Track Car. The M2 was originally intended to function as an artillery tractor. The M3 had a longer body than the M2 with a single access door in the rear and seating for a 13-man rifle squad. Ten seats were arranged down either side of the vehicle, with three in the cab. Racks under the seats were used for ammunition and rations; additional racks behind the seat backs held the squad's rifles and other stowage. A small rack for mines was added on the outside of the hull just above the tracks. In combat, most units found it necessary to stow additional food, rucksacks and other crew stowage on the outside of the vehicle. Luggage racks were often added in the field, and very late vehicles had rear-mounted racks for this crew stowage.
Early vehicles had a pintle mount just behind the front seats mounting a .50 caliber (12.7 mm) M2 Browning machine gun. The later M3A1 adopted a raised, armored 'pulpit mount' for the .50 caliber, and .30 caliber (7.62 mm) machine guns could be used from mounts along the sides of the passenger compartment. Many M3s were later modified to the M3A1 standard. The body was armoured all around with an adjustable armoured shutter for the engine's radiator and a bullet proof windscreen.
Total production of the M3 ran to nearly 41,000 vehicles. To supply the Allied nations International Harvester produced several thousand of a very similar vehicle, the M5 half track for Lend-Lease. The M16 MGMC was an M3 based Multiple Gun Motor Carriage equipped with the Maxson M45 mount (more specifically the M45D) with 4 M2HB machine guns (5,000 rounds).
This is the latest in Dragon's 'Smart Kit' series. It means that you have a goodly number of options and neat features. The biggest is a fully detail drive train and chassis. This includes preformed plastic tracks, a bevy of slide molded parts like idler and sprockets, positionable front grill, the ability to mold side cab doors up or down, to have the forward visors open or closed and others. There is a nice photo etch sheet included as well as a driver and gunner figure. A first in my experience with armored kits is a pair of bulged front tires to simulate the vehicle weight. The guns and gun mount are superbly molded. Again slide mold technology provides a high degree of fidelity to detail and allows the ends of the guns to be hollowed out.

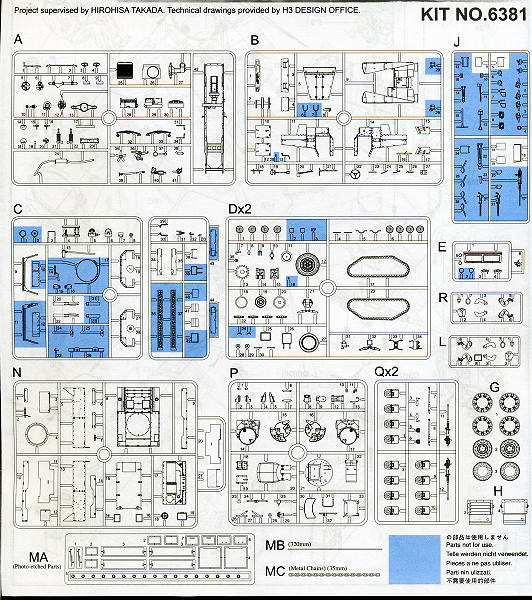

Instructions are quite well done in Dragon's usual style, with Model Master paint references. There are markings provided for six olive drab vehicles all post D-day.
The smallish decal sheet is superbly printed and should work without any problems.
I'd have to say that this pretty well puts your older Tamiya kit out to pasture. I foresee a number of other kits based on the M3 chassis coming in the very near future.
My thanks to www.dragonmodelsusa.com for providing the preview kit. This kit is now available at your local hobby shop.
