Airfix 1/48 Bf-109E
KIT #: A05120
PRICE: $24.95  MSRP
DECALS: Three options
REVIEWER: Scott Van Aken
NOTES: New mold kit

HISTORY
The Bf-109E

In late 1938, the "Emil" entered production. To improve on the performance afforded by the rather small 447-522 kW (600-700 hp) Jumo, the larger Daimler-Benz DB 601A engine was used, yielding an extra 223 kW (300 hp) at the cost of an additional 181 kg (400 lb). To test the new 1,100 PS (1,085 hp, 809 kW) DB601A engine, two more prototypes (V14 and V15) were built, each differing in their armament. While the V14 was armed with two 7.92 mm (.312 in) MG 17s above the engine and one 20 mm MG FF in each wing, the V15 was fitted with the two MG 17s mounted above the engine only. After test fights the V14 was considered more promising and a pre-production batch of 10 E-0 was ordered. Batches of both E-1 and E-3 variants were shipped to Spain for evaluation, and received their baptism of fire in the final phases of the Spanish Civil War.

E-1

The production version E-1 kept two 7.92 mm (.312 in) MG 17s above the engine and two more in the wings. Later, many were modified to the E-3 armament standard. The E-1B was a small batch of E-1s becoming the first operational Bf 109 fighter bomber, or Jagdbomber (usually abbreviated to Jabo). These were fitted with either an ETC 250 bomb rack, carrying one 250 kg (550 lb) bomb, or two ETC 50 bomb racks, each carrying a 50 kg (110 lb) bomb under both wings. The E-1 was also fitted with the Reflexvisier "Revi" gunsight. Communications equipment was the FuG 7 Funkgerät 7 (radio set) short-range radio apparatus, effective to ranges of 48–56 km (30–35 mi). A total of 1,183 E-1 were built, 110 of them were E-1/B.

E-2

Only very limited numbers of the E-2 variant were built, for which the V20 prototype served as basis. It was armed with two wing mounted, and one engine mounted MG FF cannon, which gave considerable trouble in service, as well as two MG 17s cowl machineguns. In August 1940, II./JG 27 was operating this type.

E-3

To improve the performance of the Bf 109E, the last two real prototypes, V16 and V17 were constructed. These received some structural improvements and more powerful armament. Both were the basis of the Bf 109 E-3 version. The E-3 was armed with the two MG 17s above the engine and one MG FF cannon in each wing. A total of 1,276 E-3 were built, including 83 E-3a export versions. Both the E-1 and E-3 were built at the same time on the same assembly lines at a ratio of 6 109E-3s for every 4 109E-1s.

E-4

The E-3 was replaced by the E-4 (with many airframes being upgraded to E-4 standards starting at the beginning of the Battle of Britain) which was different in some small details, most notably by using the modified 20 mm MG-FF/M wing cannon and having improved head armor for the pilot. With the MG FF/M it was possible to fire a new and improved type of explosive shell, called Minengeschoß (or 'mine-shell') which was made using drawn steel (the same way brass cartridges are made) instead of being cast as was the usual practice. This resulted in a shell with a thin but strong wall, which had a larger cavity in which to pack a much larger explosive charge than was otherwise possible. The new shell required modifications to the MG FF's mechanism due to the different recoil characteristics, hence the MG FF/M designation.

The cockpit canopy was also revised to an easier-to-produce, "squared-off" design, which also helped improve the pilot's field of view. This canopy, which was also retrofitted to many E-1s and E-3s, was largely unchanged until the introduction of a welded, heavy-framed canopy on the G series in the autumn of 1942. The E-4 would be the basis for all further Bf 109E developments. Some E-4 and later models received a further improved 1,175 PS (1,159 hp, 864 kW) DB601N high-altitude engine; known as the E-4/N this first appeared in July 1940. The E-4 was also available as a fighter-bomber with equipment very similar to the previous E-1/B. It was known as E-4/B (DB 601Aa engine) and E-4/BN (DB 601N engine). A total of 561 of all E-4 versions were built, including 250 E-4, 20 E-4/N, 211 E-4/B and 15 E-4/BN.

THE KIT

As you know, Airfix is on a mission to regain its status as a company that builds kits people want to buy. They are doing so by not only producing nicely molded and detailed kits, but offering them at a most reasonable price. This is true of their new mold Bf-109E as it is easily $15 less expensive than those now offered in the US by Tamiya and Hasegawa, with detailing that is nearly as good and offering multiple versions in the same boxing.

Let's start with the detailing. What seems to be a bit overdone in 1/72 scale, seems just about right in 1/48. It is still not as petite as what you find on Hasegawa kits and is nearly the same as on Tamiya kits. The plastic has a somewhat matte finish and thanks to good quality control, there are no sink areas near the alignment pins, a real problem with some kits. There are a few inserts to take care of the different variants, specifically the gun position on the wing leading edge where the position of the gun is different on the E-1 as compared to the cannon armed E-3/4 versions.

The cockpit is very nicely done with all the various bits one would expect and that includes sidewall detailing and parts. The seat has a molded in seat harness and Airfix provides a very nicely done three piece pilot in appropriate garb. An engine half is molded into each fuselage half and there are engine mounts to add to the detail. Cementing the upper cowling is an option, though I think most will do just that. Unlike Airfix's competitors, all of the flight control surfaces are separate. This includes the leading edge slats. The flaps have tabs to be in the normal down position, but by removing them you can position them up. Rudder and elevators are also separate to allow them to be more dynamically positioned. Two different upper cowlings are provided. Though not used in this particular boxing, a sand filter is provided for those wanting to use aftermarket desert markings.

A 'wheels up' option is provided by doors with wheels halves attached. The kit main wheels are flattered and bulged a bit. The outer wheel hub is a separate item to assist in painting. For things under the fusealge, there are ooptions of a drop tank, 250 kg bomb, 500 kg bomb or a tray with four bombs (I'm guessing 50 or 100 kg). Several different windscreens and backlights are provided depending on which variant is being done. The windscreens include one with additional armor and one with a telescopic gunsight. The main canopy section is molded with tabs on it to pose it open, but one can cut those away for a closed cockpit. To my eye, the windscreens are not as nicely done as those on the Tamiya and Hasegawa kits, being a bit thick. Three different spinners are offered, one with the cannon opening and two pointed spinners; one more blunt than the other.

I know that people will or have picked this one apart already and I'll let them. The only real disconnect I could find is that there are no wing shell ejector chutes. There is an area to be opened if one is using the cannon wings (for the E-3/4 version). I don't recall if the 109E ejected shells or retained them in catch areas to be recycled. If not, one can duplicate these openings with little rectangles of black decal. I also noted that some parts not used may be applicable to an E-7 version. One has to realize that during the Battle of Britain and before, 109Es were not plumbed for drop tanks or even bombs (until late 1940). It was the 109E-7 that introduced the ability to carry a drop tank and of course, this and the bomb thing was retrofitted to the earlier versions.

Instructions are well done and the 43 construction steps are easy to follow. Airfix continues their irritating habit of using Humbrol numbers for paints rather than telling us what the shade actually is. The only place that is provided is in the full color painting and markings guide. There are three decal options. One is for the yellow-nose box art plane, a 109E-4/N of Adolf Galland with JG 26 in late 1940. The next is a 109E-3 of JG 51 from July 1940. It has the honor of being the first Luftwaffe fighter shot down over the UK. The third option is a 109E-1/B fighter bomber from LG2 in September 1940. This aircraft has also been retrofitted with an  E-4 windscreen and canopy. All three are in 'slate grey/US light green' over 'aircraft blue'; in other words, RLM 71/02/65. The decal sheet is well printed and includes full data markings, but no swastikas. Time to break out the swastika sheets for this and other Airfix kits.

CONSTRUCTION

It seems that if I don't start on a kit soon after purchase, it tends to languish, sometimes for years. Fortunately, I had just finished one so felt justified to start another. So it is with this one. As I'd already previewed two Pavla upgrade sets for this kit (Pavla U 48-35: Bf-109E wing radiator, wheels, exhaust and guns and Pavla U 48-36: Bf-109E Flight Control Surfaces), it seems I had all I needed to do one up good. Interestingly, Pavla seems to have decided that the cockpit is fine and has not developed a resin one for it (at least not yet).

First thing I did was to decide on which version I'm going to build as it will make a difference during construction. I picked an E-4 variant as I had an 'E' decal sheet I've been working on to build all or most of the options in it. It is Aeromaster 48-249 "Marauding Emils Pt.IV". I've used two of the schemes and there are three left, all of them E-4 versions.

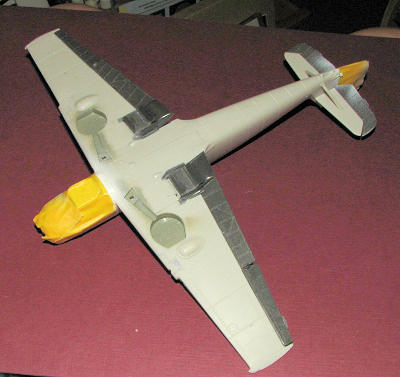

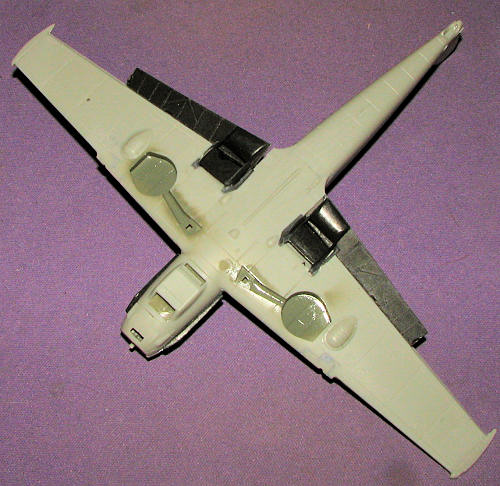

Next, I opened up the holes for the under wing cannon bulges and glued the wing halves together. The upper wing has a bit of a step near the tip, but was easily sanded down without loss of detail. Next, I had to cut off the exhaust from the kit to use the much nicer ones from Pavla. This was easily accomplished with a razor saw, leaving a slight indentation towards the aft portion of the cut away area. The Pavla exhaust (which are hollowed out) have a small 'ramp' of resin towards the rear that fits into this hollowed out section. A bit of trimming is needed for a tight fit, but it takes all of a few minutes to make a big improvement. You can perhaps see this in the image after the exhaust housing was cut away. This is a one time shot on gluing this so much test fitting is needed to be sure all fits properly. However, I think you'll agree that the result is worth it.

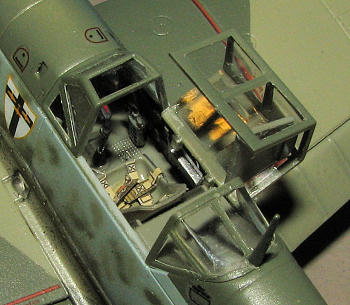

With the exhaust on, I went to the interior. This is all pretty straightforward stuff and the detailing here is pretty good as well. On the bulkheads, one attaches a throttle quadrant to one side and the oxygen canister to the other. There is good radio and map holder detail there for you. I found that the molded in harness was pretty, well, lame. You get raised belt areas, but no buckles or other detail. This cries out for aftermarket and fortunately for us all, Eduard does a color Luftwaffe fighters harness set that has one for the 109E. It really makes things look a lot better. The cockpit also has a nicely done control stick and trim wheels. The seat and the frame are separate items as well. The instrument panel was painted and glued in place in the cockpit tub. I trapped the cockpit between the fuselage halves while the glue dried on this to be sure all was aligned properly. Once that happened, I glued the spinner back plate to the prop shaft and trapped that in between the fuselage halves, glued in the cockpit and glued the halves together. Naturally, there were seams so all of those got the super glue treatment.

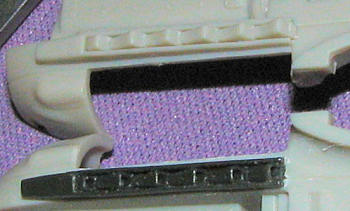

While all that was drying and being sanded, I went back to work on the wings. At this time I glued in the cannon inserts. The fit really isn't very good on this, and frankly, I wasn't surprised as inserts often cause problems. It required considerable filling as they were not quite as thick as the wing leading edge, but were finally in place. Reaching for the Pavla bits, the under wing radiators were installed. These are not quite as long as the kit parts, so there is a gap in front of the small 'forks' that needs filling. When that was done, I glued the wing in place on the now sanded down fuselage. The fit is really very good. There is a gap at the lower rear, but the upper root is perfect, requiring no trimming or filler.

I then cemented the rounded radiator exhaust forms (I don't know what else to call them) onto the Pavla resin replacement flaps. Then the flaps were glued on in the lowered position. The lower cowling had the radiator piece glued in and the cap atop it. I had to completely remove the alignment pins on this cap piece. There is a bar that goes across it that kept it from fitting all the way down. Now it could be that I installed the radiator piece upside down, but if not, then you'll have to do the same thing as did I. It was then just pressed into place on the lower cowling. It is a very tight fit as you can see from the image.

Moving on, I glued on the horizontal stabilizers. Be careful not to trim off a small piece at the root which looks like a sprue gate. I tried to set them up without the brace to ease painting, but in the end, I had to glue in the braces to keep the stabs from drooping down before the glue set properly. The resin rudder and ailerons were glued on, followed by the elevators. I guess I could have held off on the rudder until after it was painted, but it makes no difference. The small radiator coolant doors were the next pieces to be cemented in place, these also coming from the Pavla resin set.

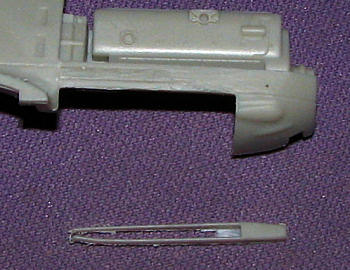

Flipping over the airframe, I glued in the gun sight and then started on the canopy bits. The Airfix canopy pieces are a bit thick, but otherwise fairly well done. I found it odd that the frames near the top of the molding in all the pieces were somewhat indistinct. Not sure why that is, but it isn't as crisply molded as one finds on other 1/48 109E kits. The aft section and windscreen were glued in place, and I noticed that these parts were a little bit narrower than the area into which they fit. You can see this in the image to the right.  As I wanted to pose the canopy open, I couldn't use the one for this variant as it would require me to cut off the tabs that held it open. Fortunately, the E-1/3 canopy wasn't going to be needed so it was press fit into place after cutting off the tabs. The fit is quite tight and it will do a super job of keeping out the overspray.

COLORS & MARKINGS

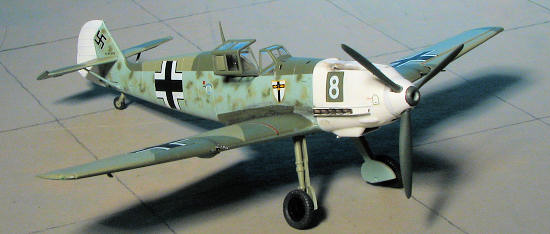

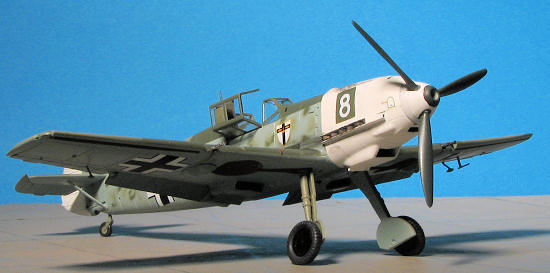

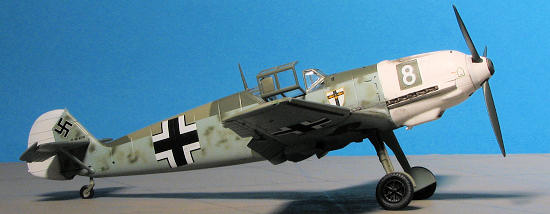

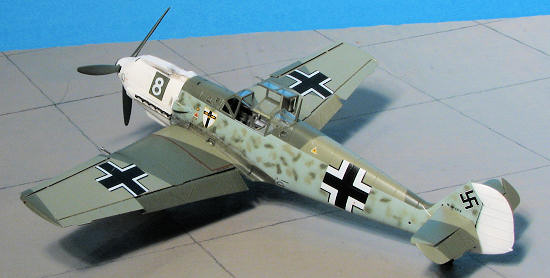

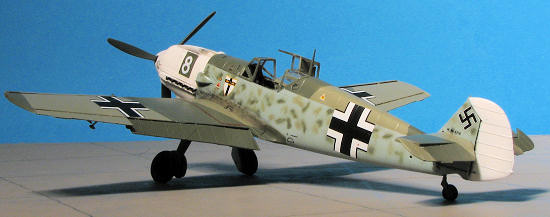

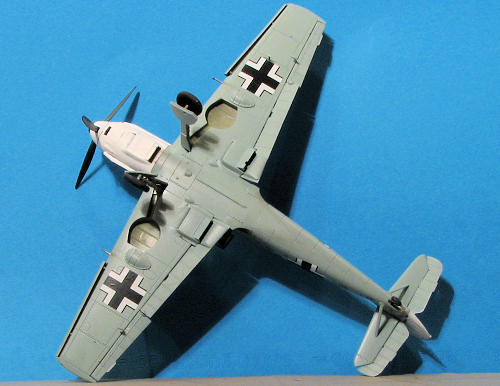

As I mentioned, I am using a third option from  Aeromaster 48-249 Marauding Emil's part IV. This aircraft was flown by Gefreiter Nittmann of 7./JG 27 in September 1940. Rarely do I get to use more than one option from a sheet, but this time, I'm going to try to use as many from this one as I can. The plane is in RLM 71/02/65 and for this one, I used all Testors Model Master enamels. First the nose and rudder were painted white. Then that was masked off and the underside and side RLM 65 was sprayed on. Next was the RLM 02 for the upper surface. There was a lot of overspray onto the side for this, but it matters not as I'll eventually spray that area with the RLM 65 later.

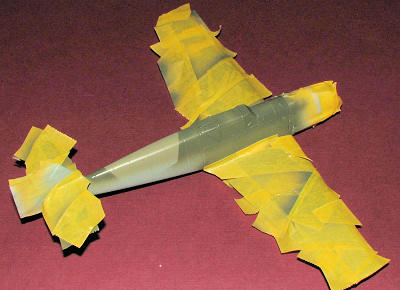

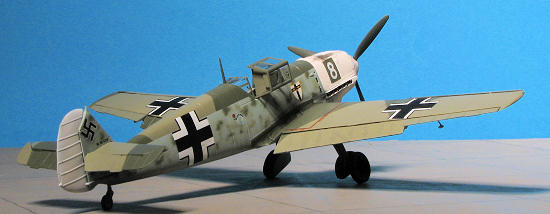

For this one, rather than go freehand, I decided to mask off the colors. The demarcation line on these planes is pretty tight anyway so in this scale, masking is a viable option. At least, that is my story and I'm sticking with it. Once the RLM 02 was masked, I sprayed on the RLM 71. Later that was all masked and the RLM 65 was touched up. One thing about spray painting is that if you don't want overspray on something, it has to be masked. For me that means using a considerable amount of masking tape. Light mottling was then done on the sides in RLM 02 and 71. There was the usual touch up stuff that seems to be the norm with me and eventually, all the colors were applied.

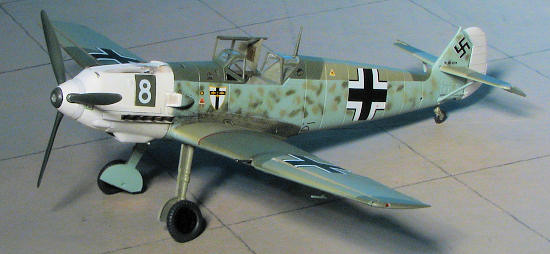

The next step was to install the main landing gear and the tail gear. This was done after wrapping the main oleos with Bare Metal Foil Chrome. fit of both was very good and the main gear especially was a nice, positive fit. When dry, a coat of clear gloss acrylic was applied in preparation for decals. The sheet I used isn't exactly new, having a 1997 date on it. I expected no problems, but discovered that a couple of the insignia were starting to crack, with one breaking into three large pieces. Fitting it back together wasn't an issue, though one that had just split in the middle was a total loss and had to be replaced by a kit marking. I also used many of the data markings from the kit sheet. Eventually all the markings from the sheet were applied. I had to spray some RLM 71 onto decal paper to duplicate the section of the nose that was masked off along with the aircraft number before applying the white. For stencils, I used the kit decals. Some of these silvered, despite being put onto a gloss surface and using setting solution.

CONSTRUCTION CONTINUES

With the decals on, I continued to attach pieces. The wheels and gear doors were glued into place. I built up the prop and hub after painting them and they were attached. I also glued on the aileron mass balances and the pitot tube to the underside of the wing. A coat of semi-matte clear was sprayed on to seal in the decals. Next, the masking was removed from the clear bits and I tossed the temporary canopy. Installation of the head armor was accomplished using clear paint. Tamiya pastels provided the soot for the exhaust and the guns. The final bits to install were the wing cannon barrels. These Pavla bits are very nicely done. One went in with no problems, but the second slipped in to far and stuck there. Attempts to remove it were futile as the super glue was holding on too much. Eventually, it broke off. With the kit gun barrels gone, I had no choice but to improvise. It is always something.  The canopy section was glued on and the model was done.

CONCLUSIONS

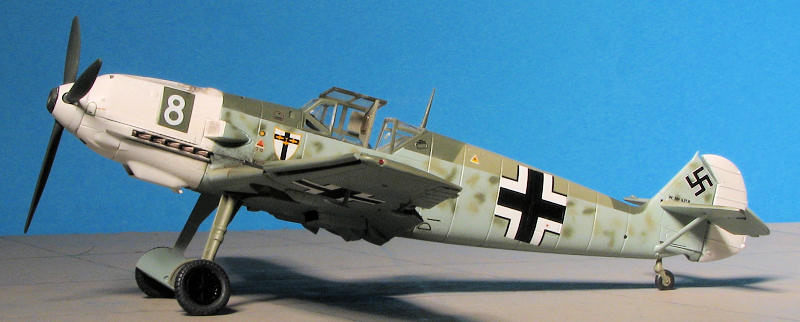

This really is a nice kit. To its plus, it does three different variants and has loads of weapons. The wing fits snugly and in general, it has very good fit. The wing gun insert is probably the worst fitting item in the kit and I'm not totally jazzed with the decals. It is a real plus having separate flight control surfaces, though I did find the clear bits a bit thick with the definition of the frame lines not as crisp as I've found on other kits. Still, it is nothing really major.

Now I did use two Pavla resin sets on this one and they do add a level of detail not found on the kit. The gun barrels and exhaust are particularly well done as are the wheels. However, for most, this set isn't really necessary, though it is nice. Overall, I'd have to say that this one offers real value for the money and is one I think you'll enjoy as well.
