Fujimi 1/72 A-4C/E Skyhawk
|KIT #:||F-26 & F-24|
|DECALS:||Four options in each kit|
|NOTES:||You can never have enough Fujimi Skyhawks!|
The A-4C and E/F were the most common Skyhawk variants during the Vietnam War. Compared to the earlier A-4B, the A-4C introduced a limited all-weather capability, while the A-4E added additional avionics in an extended nose (and later in a dorsal ‘hump’), as well as an additional pair of under wing pylons (for a total of 5).
This review is intended to complement my A-4B review (q.v.). Most of the same general comments apply to these kits. The A-4C kit is largely identical to the A-4B, with the exception of the forward fuselage halves. The A-4E/F kit features a new forward fuselage, new intakes, and an optional avionics hump.
I followed the same construction process as for the A-4B. I made a couple of additional enhancements compared to that build:
- I added the retractable landing light to the inside of the starboard main landing gear door, using an MV lens.
- I carved away the moulded-in wing tip position lights and the approach light in the port wing, and replaced them with chunks of clear sprue which I sanded to shape and polished. For the approach light, I drilled three tiny holes in the inside face of the light. Note that the large position lights on the wing tips are not coloured, unlike the smaller navigation lights.
- I added sway braces to all the pylons, using scraps of plastic.
Like the A-4B, the A-4C nose is moulded with the rain removal fairing in place, whereas it should have a windscreen wiper. I removed the fairing and scratchbuilt the wiper and arm from sprue and thin plastic sheet. The A-4C should feature the radar altimeter fairing under the port wingtip – this is included in the A-4E kit as part 89. I used the A-4E part as a reference and carved a duplicate from plastic sheet. The A-4C I chose to model was an early version, without any radar warning aerials. I fitted 1000-lb Mk. 83 bombs from a Hasegawa weapons set to the outboard pylons, and used one of the kit drop tanks on the centre-line station.
For the A-4E, be sure to use the early style nose gear strut (part 8). Part 91 depicts the later strut with nosewheel steering, introduced with the A-4F. The A-4E I modeled did not feature the avionics hump, but did carry five RWR aerials under the nose and aft fuselage. I fitted a D-704 buddy refueling pod to the centre-line station (from the Fujimi KA-6D kit), and a pair of drop tanks to the inboard wing stations. I modified the kit wing tanks (which have tail fins) to the earlier style, with a rounded aft section, like the centre-line pod provided in the kit.
|COLORS & MARKINGS|
Like my A-4B, I found most of my reference material for these builds at the A-4 Skyhawk Association website (www.a4skyhawk.org).

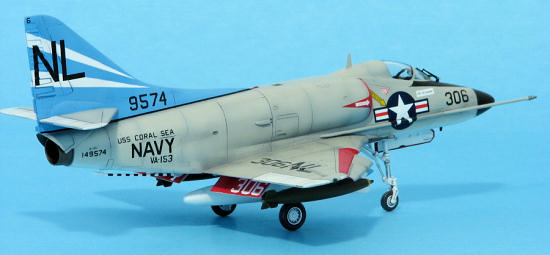

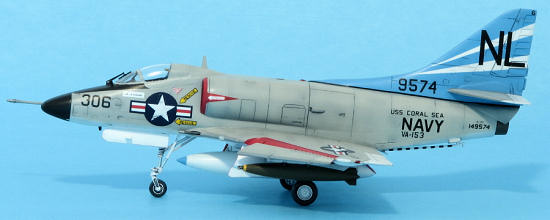

the A-4B, I modeled an aircraft from VA-153 “Blue Tail Flies” aboard USS

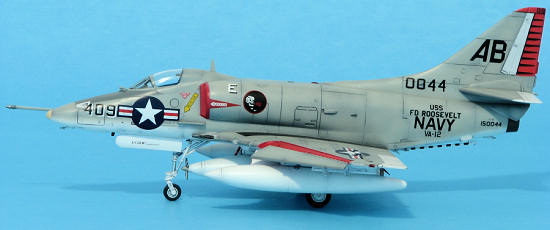

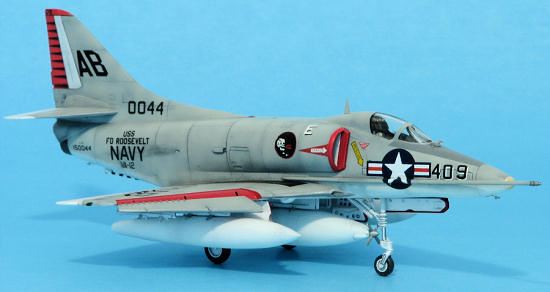

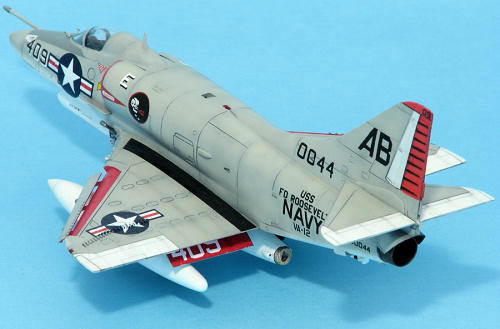

the A-4E, I modeled an aircraft from VA-12 “Flying Ubangis” aboard USS
Franklin D. Roosevelt, during that carrier’s one and only
For the AB tail code, I enlarged a 1/72 scale drawing of the A-4 tail to 200%, then carefully drew the tailcode on the enlargement. I then reduced the drawing back to 1/72, and taped it to black decal film. I carefully trimmed the code letters from the decal sheet – tedious, but reasonably successful in this case. The nose modex required black numbers, shadowed in white – trying to find two sets of identical style and size had me combing the spare decal box!

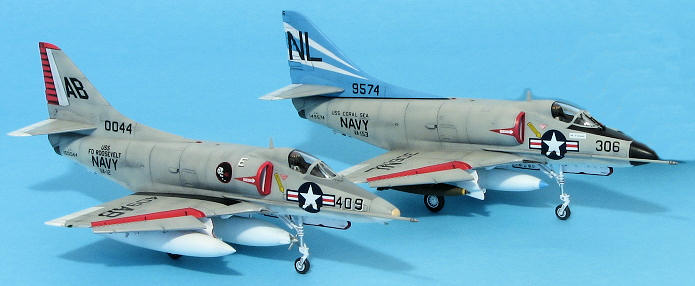

These were my 4th and 5th Fujimi Skyhawks, and I’ve still got a TA-4F and another A-4C in the stash. These kits are a blast to build – the multi-part fuselage makes assembly a little tricky, but the end result looks great.
A-4 Skyhawk, Detail & Scale Vol. 32, Bert Kinzey
