KIT: Huma 1/72 Ar-80v2
KIT #: ?
PRICE: $
DECALS: One option
REVIEWER: Brian Baker
NOTES:

HISTORY

Designed in 1934 to an RLM specification that also resulted in the Bf-109, FW-159, and  HE-112, the AR-80 prototype began flight testing early in 1935. Powered by a 695 hp. Rolls-Royce Kestrel engine, the fighter prototype was heavier than anticipated, and its performance was unimpressive compared to its competition. The fixed landing gear probably contributed to this lackluster showing, and only three prototypes were built, the last being powered by a 640 hp. Junkers Jumo 210C. The final prototype, V3, was eventually converted into a two-seater with an additional cockpit, and was used to test advanced, high-lift flaps.

THE KIT

Humaís kit appeared a number of years ago, probably about 2001 or 1002, but there is no indication on the plans or box when it was actually produced.  Consisting of 29 injection molded parts, all of which are used, the kit is accurate and well-engineered for easy assembly, going together like a Ďsnap-togetherĒ kit. My example had no flash, and there were no molding irregularities. The instructions consist of two sheets, one giving basic construction details, while the reverse side provides a color three view drawing of the V2 prototype, the one depicted in the kit. The second sheet is a sprue diagram.

CONSTRUCTION

The cockpit interior is, like many Huma kits, rather Spartan, and if you donít include a pilot figure, then you will need to add some detail to the interior, especially on the cockpit sides. The kit provides a floor, seat, stick, instrument panel, and rear bulkhead. The radiator facing also must be installed before the fuselage halves go together.

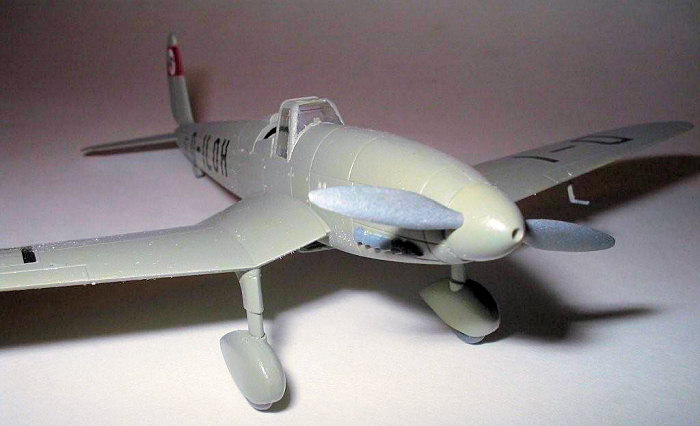

The wings are cast in one piece, making tedious gluing of wing sections unnecessary. The landing gear struts and wheel pants are a simple three part structure, and the propeller can be assembled and painted before being inserted into the already joined fuselage halves.

COLORS & MARKINGS

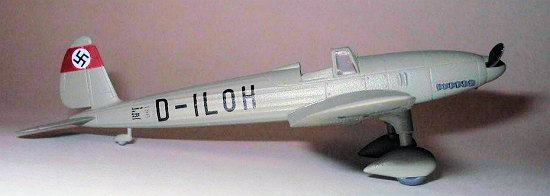

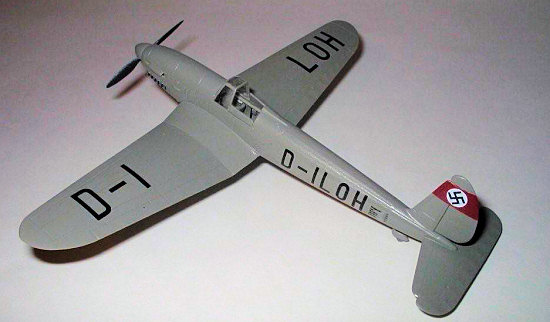

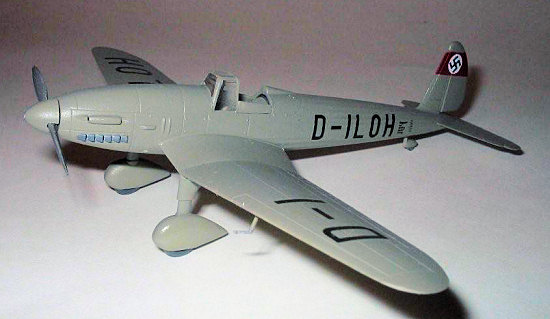

This is a very easy airplane to finish.  I used a coat of RML 02 grey, and painted the red band for the swastika, which appears in a white disk in the usual position. The AR-80 V2 carried a civil registration, D-ILOH.  The registration of the AR-80 V1 is unknown, while the Jumo powered third prototype carried D-IPBN in the usual positions.  The V3 prototype would be difficult to convert from the V2, since the engine, wings, and other components were different, and I have yet to see a photograph of it. Decals are thin and accurate, and no problem to apply, and I didnít need any Solvaset or other decal solution.

CONCLUSIONS

This is a good quick-build, and fills a gap in my Luftwaffe collection of 1/72 scale fighters. It is suitable for both experienced and inexperienced modelers, and with only a little effort, a worthy replica of the airplane can be achieved.  Get one while these are still available.

REFERENCES

Probably the best source of information on this airplane is William Greenís WARPLANES OF THE THIRD REICH.  Other information may be found on the internet.

Brian Baker

August 2007
