Hasegawa 1/48 F-14A Tomcat 'VF-84 Jolly Rogers'
KIT #: | 09776 |
PRICE: | $84.95 MSRP |
DECALS: | Two options |
REVIEWER: | Dan Lee |
NOTES: |
Aires
Exhausts, Royal Resin Wheels, True Details Ejection Seats, Eduard PE,
Two Bobs |
HISTORY |
“There isn't enough thrust in Christendom to fix this plane.”
With that
sentence, Vice Admiral Thomas Connolly sealed the fate of the F-111B and his
Navy career.
Out of the ashes of a plane totally unsuited for carrier
operations appeared the F-14 Tomcat (aka the
The US Navy
realized in the early 60s that the F-4 Phantom wasn’t going to be the 1970s/80s
Fleet Defender as it did not have the sophisticated radar and long ranged
missiles to intercept Soviet Missile Armed Bombers before they could attack the
Carrier Battle
Groups (CVBGs.)
In the days of the Cold War, the US Navy’s primary offensive
mission in World War 3 was to push several carrier battle groups past the GIUK
(Greenland-Iceland-United Kingdom) gap and attack the numerous
submarine/missile/bomber bases on the USSR’s Kola Peninsula.
They would have had to fight their way through a
gauntlet of missile armed bombers (and subs) just to get into strike range.
The main threat were the USSR’s Badger bombers (and soon
the much faster/better Backfire Bombers) carried a variety of anti ship missiles
that flew at speeds of Mach 4+ and had a range of almost 200 nautical miles to
300 nautical miles.
Against that kind of opposition it was in the Navy’s
best interest if the Fleet Defenders could intercept them before they were
within range of the Fleet’s CVBGs (the doctrine known as “shooting the archers,
not the arrows.”)
Originally,
the “ideal” new Fleet Defender was supposed to be the Douglas Missileer which
proved that some ideas are better left on paper.
It carried a radar (later known as the AWG-9) that can
lock on while scanning up to 6 targets simultaneously and carried up to eight
monster missiles called Eagles.
The major flaw with this plane was that it was a
subsonic pure interceptor (no dogfighting required.)
The weirder proposals had the Missileer based on the
Intruder and Tracker (!)
Fortunately, someone wisely pointed out that subsonic
didn’t really make sense as interceptors often had a need for speed while flying
the highway to the danger zone.
Along came SecDef McNamara and his PhD geniuses who decided that the US
Navy Fleet Defender and the USAF’s low level strike aircraft were similar and
decided to base them off the same airframe known as the
Fortunately, Grumman (a prime sub contractor on the F-111B) had some ideas about
a replacement.
Grumman redesigned the airframe and kept the swing wing to
optimize performance at low speeds for landing and dogfighting based on the
Vietnam experience where old school dogfighting proved to be as critical as
firing long range missiles.
Like the F-111B, the Tomcat carried the AWG-9 radar and
the very large Hughes Phoenix missile which were the longest ranged
Unfortunately, the designers used the same TF-30 turbofan engines that helped
doom the F-111B.
These engines would be the bane of the Tomcat’s existence as it
led directly to the loss of many aircraft and aircrew as they were not really
designed to be used in a fighter plane (!)
A replacement engine might have been developed sooner,
except for the pain of dealing with the lingering financial costs of the Vietnam
war and the bureaucratic mindset which believed that losing trained aircrew and
Tomcats was more cost effective than funding a replacement engine.
Another of the Tomcat’s drawbacks was that it was a very
large plane, the largest two seat fighter in US Navy history, combined with its
weak TF-30 engines wasn’t as good a dogfighter as the Navy or the movie Top Gun
would have you believe.
In the 70s
and 80s, all VF squadrons (except those that served on the USS Midway and USS
Coral Sea which were too small to handle the Tomcat) transitioned from the F-4
Phantom to the F-14 where they served as the primary Fleet Defender till
complimented by the Ticonderoga class Aegis CGs.
The Tomcat
project also proved to be a very expensive one as the problems with the engine,
various cost overruns and cuts to the number of Tomcats bought nearly bankrupted
Grumman.
When the Shah of Iran looked for a plane that could intercept Soviet
Mig-25 recon planes, Grumman leapt at the chance to supply an export version and
won a contract for 80 Tomcats which saved both Grumman and the F-14 program.
Of course, no one realized that this would backfire when
the Shah was forcibly removed from power in 1978 as the Iranian revolution put
religious extremists in power.
Like the
F-15, the F-14 export version saw more action than their US counterparts as the
Islamic Iranian AF Tomcats fought the Iraqi AF during the Gulf War of 1981-1988.
The Iranian Tomcat pilots were well trained/skilled and
kept the Iraqis from gaining air superiority.
In those rare times when US Naval Aviators could go
“fangs out”, the Tomcat showed it could fight well for such a large and
underpowered plane.
The Libyan Air Force found out how lethal US Naval
aviators and the Tomcat could be on two separate occasions in the 80s.
It was only
16 years after the Tomcat was introduced to the Fleet when the F-14B/A+ with the
much better F110 turbofan engines appeared giving the Tomcat the engines it
should have had 16 years earlier.
The F110s gave it a 1:1 thrust to weight ratio and
improved dogfighting performance.
Later electronics upgrades gave it the ability to carry
various air to ground weapons which allowed the Tomcat to be used for long range
strike missions which was necessary as the Navy had to retire the Intruder
without a true replacement.
Unfortunately, the Tomcat did not get any radar upgrades
to fire the
Iran is
still flying an unknown number of them at the time of this review.
These are kept flying in large part due to parts made
locally, sold to them through IranContra and/or bought (through intermediaries
and front companies) from clueless Pentagon bureaucrats in 2006 as they sold off
remaining Tomcat part stocks as surplus forgetting that Iran (supposed threat)
was the only other nation that flew the Tomcat.
Naturally, this led to a stupid Pentagon over reaction
that caused conflict with various airplane museums over the legality of their
newly acquired Tomcats.
VF-143
Unlike the
USAF, the US Navy has had a long tradition of salty squadron nicknames.
One of the most unique (and loathed by those who are
probably more serious/uptight than they should be) belongs to VF-143 aka the
World Famous Puking Dogs.
It was
originally VF-871 Griffins, a reserve squadron that was activated for Korea.
The most often told Squadron legend is that a junior
officer had the task of making a paper mache Griffin for a party dumped onto
him.
The junior officer of the legend wasn’t very talented with paper mache
and did such a bad job of it that the Griffin looked like crap with its head
drooped and a wide open mouth.
Depending on the source, a female party guest, a wife
or the CO’s wife took one look at the sad excuse of a mascot and proclaimed that
the so-called “Griffin” looked more like a puking dog and thus the World Famous
Puking Dogs were born.
Sans Reproache.
It went
through a couple of Navy designation changes till it became VF-143 in the early
1960s.
The Puking Dogs flew F-4 Phantoms over Vietnam during seven war cruises
with one Mig-21 kill.
It was a Pacific Fleet Squadron till it was transferred
to the Atlantic Fleet in the mid 70s along with VF-142 “The GhostRiders” as part
of Carrier Wing 7.
Later, the Puking Dogs flew the first TARPS combat
missions and were the first squadron to fly the F-14A+/B.
After the Tailhook mess of 1991, VF-143 was not allowed
to vomit anymore and changed their name to the “Dogs” to the dismay of VF-143
supporters, but it didn’t last very long. Unlike its sister squadron VF-142, it
survived the various drawdowns of the 1990s/2000s and is now VFA-143, flying the
FA-18E Super Hornet, the standard plane for every role in a Carrier Wing except
anti sub, AEW and

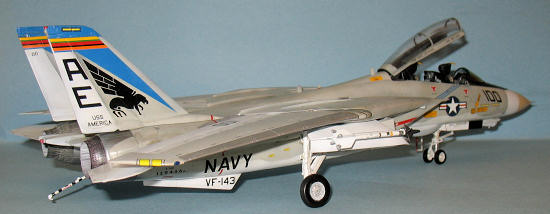

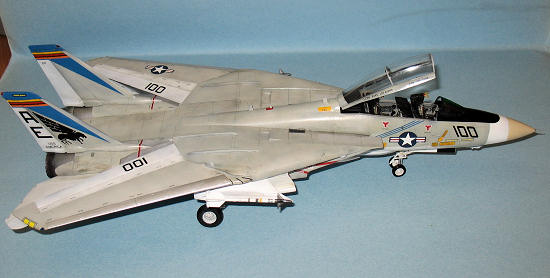

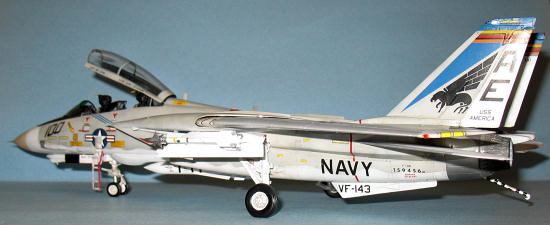

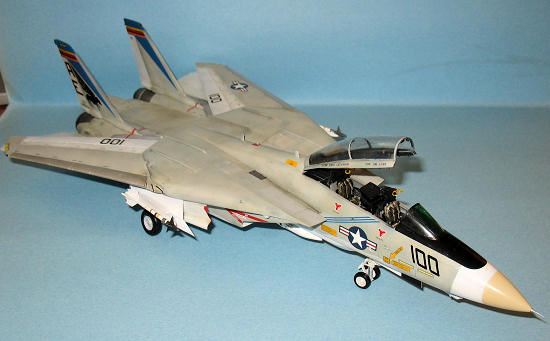

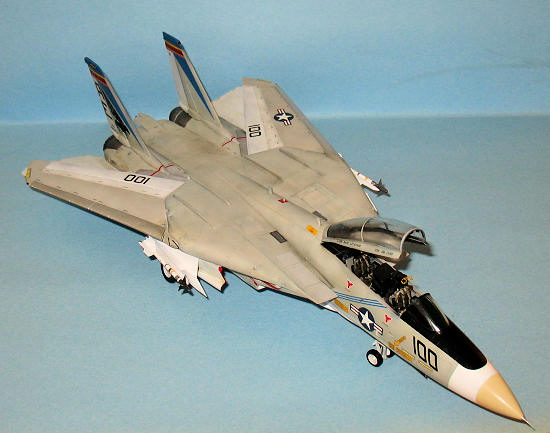

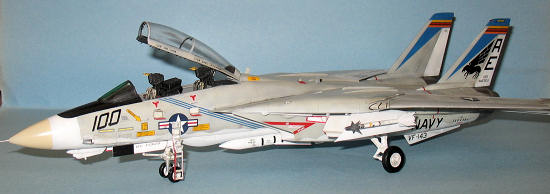

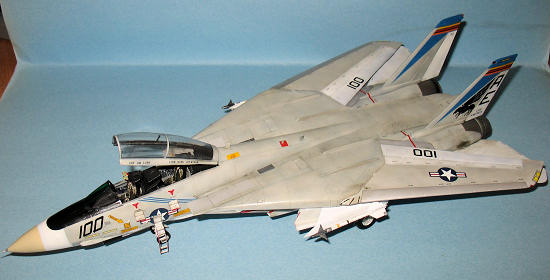

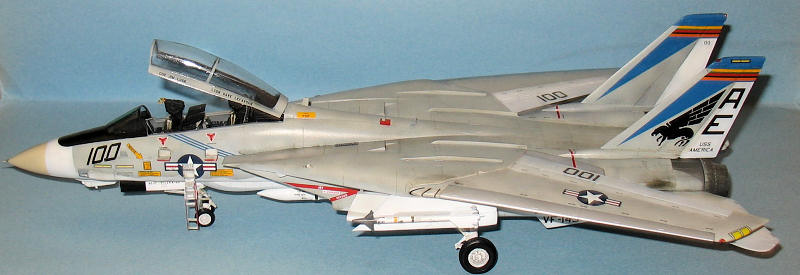

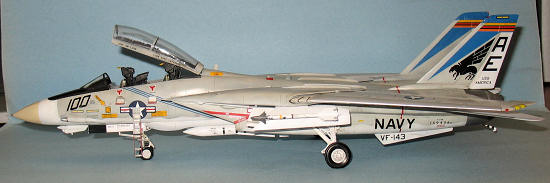

The Tomcat that is the subject of this model was the famous VF-143
THE KIT |
The Tomcat
and I have a long history... of failure which to me is ironic as the Tomcat is
one of my favorite planes of all time.
Despite my “love” for this plane, the various models
seem to only mock me and pound my ego into dust (sadly reminiscent of my worst
ever girlfriend.)
The first
model I attempted to build when I returned to the hobby was the Academy F-14A
(because of the VF-143 markings.)
It did not end well as I ended up sanding away all the
detail mostly out of frustration.
Little did I know that the 1/48 Tomcats were among the
harder builds and a return to the hobby using the same building “skill” I had as
a kid with something as complicated as the Tomcat was a surefire way to failure.
Hasegawa’s
F-14 Tomcat kit is probably the best available in 1/48 scale, but it is a bear
to build.
I should well know as I’ve already screwed up this kit once
before as it was my 2nd attempt at building a Tomcat.
I had to redo the seams countless times and nothing
seemed to go together.
It was when I realized that I sanded away a large part
of the rear cockpit hump and messed up the intakes that I slammed it to the
floor and threw it away in anger.
I would have to say that both of them died due to my
lack of skills and experience as the 1/48 Tomcat is not for the newbie model
builder.
The kit I
bought was a special boxing with the markings for the late VF-84 “(world famous)
Jolly Rogers” whose white skull and bones on black markings were prominently
displayed in the movie “The Final Countdown” and well known to anime fans from
Macross.
As much as I like the VF-84 markings, I had my heart set on building a
Puking Dogs Turkey.
The 20+
year old kit molds are showing their age as the parts have many uncharacteristic
(for Hasegawa) flash and sink marks (especially around the nose) on them so
clean up of the parts is mandatory.
The kit includes everything to build an A version Tomcat
(including the TARPS pod.)
The kit also comes with some stiff Photo Etch for the
canopy and white metal rims and rubber tires which really should be replaced as
I have read complaints about them slowly disintegrating and reacting with
plastic.
Not
included though are the Phoenix, Sparrow and Sidewinder missiles which must be
obtained through other sources such as Hasegawa’s (surprise) weapons sets.
It was fortunate that I had picked up these during my
first attempt at building the Hase F-14.
They are much better detail/decal wise than the Academy
versions.
One of my
habits is to collect various aftermarket sets I would use over time as my budget
allowed.
I picked up the following:
Royal Resin Wheels to replace the white metal and rubber
tires, Aires resin exhausts, True Details bang seats, Master F-14 brass Pitot
tubes, Two Bobs
CONSTRUCTION |
I was
determined not to let this model beat me silly and make me look/feel like an ass
again.
I was helped by an excellent built article in Hyperscale by David Aungst
which I really recommend to anyone building this kit the first time especially
part 3.
It shows hints, tips and issues with building the Hase Tomcat.

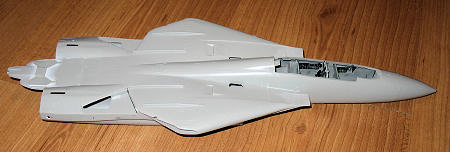

The cockpit
tub edges were sanded smooth and the parts were test fitted to ensure that I was
trying not have a repeat of the ugly gaps in the forward cockpit I had with the
1st Hasegawa attempt.

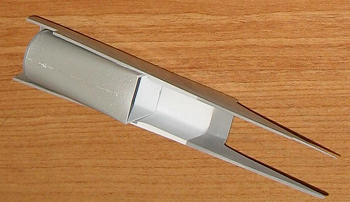

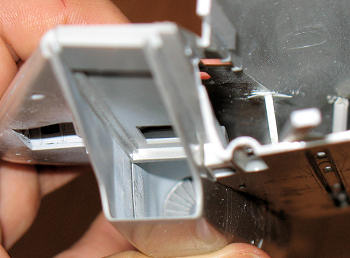

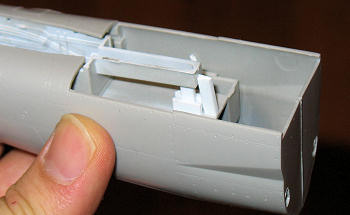

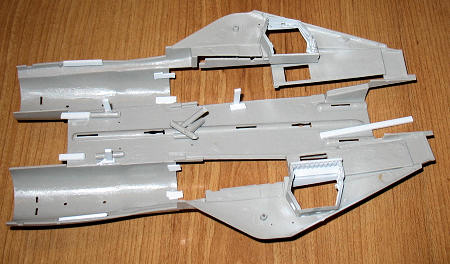

To add some stiffness to the thin rear portion of the
forward wheel well which doesn’t fit as snug to the fuselage piece as it should,
I measured and cut several pieces of 1/4” strip and glued them as support.
Unfortunately, the interior cockpit bits do not fit well as they should.
The leading edges of the consoles that touch the
fuselage were carefully sanded down to get them to fit properly.
If you don’t sand down the edges to fit then you will
get noticeable gaps between the consoles and tubs leading to gaps in the
fuselage halves. For
some reason this creates a chain reaction that leads to gaps in the cockpit
fuselage section.
There was the added job of sanding down the detail for
some of the consoles and various control panels in order to replace them with
PE.
The tub was
preshaded with leftover OD and flat black first.
A few days later it was sprayed with Gunze Dark Gull
Grey.
Instead of getting an expensive resin cockpit set in my already
expensive F-14, I opted for a much cheaper Eduard color PE fret (around $10!)
that merely updated the instrument panels.
The PE was added next which proved to be rather easy to
use for PE (yeah I know, I was as shocked as you are.)
The PE detail looks much better compared to the original
kit parts mostly because of the sharpness of the lines between the gull grey
interior and the flat black/dark grey instruments which you can not really get
hand painting the panels.
One minor complaint is that what Eduard calls Dark Gull
Grey is not what Gunze calls Dark Gull Grey.
However, I did
notice in
several F-14 cockpit photos that there was no uniformity of Dark Gull Grey
panels whether it the lighting or different paint manufacturers so I stopped any
thoughts of writing angry emails to Eduard and left it as is.
The first
thing I did with the fuselage was add the landing gear wells.
I sanded the edges to make sure these parts would sit
flush with the main fuselage and not have the large gaps that I encountered the
last time I “built” this kit.
The
fuselage seams gave me fits the last time because the seams kept cracking.
With a more experienced eye and the wisdom from the
David Aungst article, I realized that I failed to stiffen the fuselage to keep
it from flexing.
I cut strips of styrene and from the sprue gates into supports
and braces to stiffen the fuselage pieces to eliminate the need to sand/fill the
seams 5-10-15 times.
When I sanded everything down, I only needed to it twice
(as per usual) as the first time got most of the gaps filled and the 2nd time to
deal with what I missed the first time.

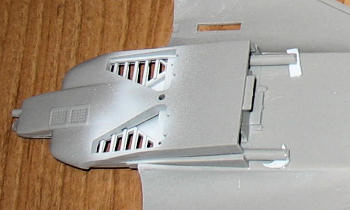

The rear
section with the RWR and fuel dump was attached and reinforced with styrene
strip and pieces of sprue (the last time, I had a hard time keeping it on
because I only used a very weak butt join.)
I ended up with a bit of a step between the two pieces
here so I used CA glue to fill and then sand it flat.
One of the
biggest of many headaches are the intakes.
First thing was I did not remove the sprue that attaches
the two sides of the intakes so as not to break them off (which is what I did
the last time as there are several prominent ejection pin markings on the
forward portion of the intake that need to be dealt with.
I filled those with CA glue, let air dry and then sanded
them down.
I glued the
rear portions of the intake using CA glue (to avoid the dreaded phantom seam
that helped beat me the last time.)
I was careful sanding them so that I did not split them
apart (again, which is what happened the last time.)
The various intake parts were painted flat white while
the engine faces were painted silver and weathered heavily based on photos of
the actual intakes.
I glued everything together but discovered that there
were some pretty
big gaps
between the front portion of the intake and the rear subassembly that had the
engine faces.
I used Vallejo Plastic Putty to fill them in and sprayed down
with flat white.
Another
issue with the intakes is that they don’t fit well with the fuselage.
I made some tabs using 1/4” strip to improve the
strength of the join to the fuselage.
The rest of the intake parts went together okay.
The intake ramps are supposed to be opened up on the
ground but I have them in supersonic flight configuration to limit eyeball
exposure to the obvious gaps in the intakes.
I followed David’s advice about sanding the mating edges
and reinforcing the areas behind the landing gear wells before gluing the
intakes onto the fuselage.
At this
point the cockpit assembly was mated to the fuselage before I continued with the
little details.
Do not follow the instructions which would have you glue the
completed nose portion to the fuselage or you will deeply regret it as there are
many gaps and areas that needed sanding as the join is very very very far from
perfect.
I added plastic card tabs to reinforce what is a very poor butt join.
I also drilled holes into the rear of the cockpit area
and added some brass tubing and CA glue to improve the strength as well as help
with the alignment (unlike last time.)
Also, I didn’t make the mistake of trying to do too much
and practically sand down the rear cockpit hump like last time.
Lastly, I glued the nose cone to the cockpit
I wanted to
do the Tomcat with wings extended forward in dirty configuration (flaps and
slats down) but I came to the realization I didn’t have enough room in my
cabinet to do the Turkey that way so I opted for full sweep.
Maybe next time.
After reviewing what David did, I realized why so many
Tomcats were done with the wings in a clean sweep configuration rather than the
dirty configuration.
Assembling the wings required some patience as the fit
isn’t perfect.
I left off the bare metal leading edges till final assembly (used
Talon and Tamiya Aluminum for the NMF .)
Next I
worked on the landing gear.
One issue I had with the nose landing gear.
If you use the attachment points for the rear actuator,
you will find that your nose wheel angles forward instead of straight down like
in all the photos and in the instructions.
Easy solution is to cut the attachment point for the
back actuator rod and align manually.
The main
landing gear is an assembly in itself.
Much work cleaning the seams before gluing them in as
there were seams and pinholes that needed to be filled and sanded.
If I were to build another one then I would seriously
consider white metal replacements.
Next I added brake lines.
It is not 100% accurate as the lines themselves (30
gauge wire) are a tad thick scale wise and that I did not capture all of them,
but it looks fine to most people and is good enough for me.
Next I
tackled the Aires Resin Exhausts.
The reason I used them is because Hasegawa provides a
two piece exhaust pipe (which are very prominent in this model I might add)
which has a more than noticeable seam running down the middle that can not be
easily dealt with due to the corrugated surface.
The various parts came off the pour stubs very easy as I
only used a exacto knife and not a saw to remove the bits.
Next I removed PE bits.
The interior parts were painted flat white or burnt
steel then weathered using charcoal to show the wear from use.
The only area to watch out for is the Aires engine
nozzles as they are about a 1mm too narrow for the Hasegawa parts which they
have to go on.
I had to sand a 1mm from the edge to so as to eliminate the step
between the resin engine nozzle and the plastic part.
I installed the engine nozzles after painting.
Lastly, I glued in the Vulcan gun bay doors as I did not want to show this area. These doors don’t fit as well as they should so be prepared to do a lot of careful sanding/filling so as not to sand away the fine details.
COLORS & MARKINGS |
Painting
The color
scheme I selected was the high viz era light gull grey over insignia white.
I understand the practicality of the many grays camo
scheme and if I were a naval aviator I would probably prefer the many grays
scheme, but I am just a mere modeler so I prefer to model the high viz markings.
The various Tomcat subassemblies’ panel lines were preshaded with
various colors (OD, dark grey, flat black, green) because I just used the
leftover colors from other builds instead of shooting a fresh batch of dark grey
or flat black.
The first
coat of paint isn’t the last as it seems I always need to fix one seam or
another.
The Turkey wasn’t immune to that.
I need to work on seams here and there due to sloppy
sanding, phantom seams and pinholes.
After some touch up, I went over the F-14 with a very
thin coat of paint (flat white for the bottom and light gull grey for the top)
to remove some of the more obvious faded panel lines and break up any noticeable
patterns in the paint to make it more random.

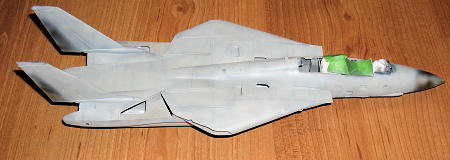

Next I had
the painful task of painting the radome, radome tan.
I don’t like masking nose cones because they are a pain,
but it’s not like I had any choice in the matter.
It took a while to make a straight edge mask that
aligned up correctly, but I did it... somehow.
I used Gunze Radome Tan.
Afterwards, I added the Master machined pitot tube which
was painted Silver.
This is much nicer than the plastic bit that Hasegawa
supplies, but be careful when looking at it up close so as not to poke out your
eye.
I masked
off and painted the anti-glare panel in front of the windscreen.
It looked awful and I was about to remask when I
discovered that the Eagle Strike Sheet had a decal of the anti-glare panel
*smacks head onto desk* that I should have used and it would have saved me the
touch up work I had to do.
Once the paint was dry, I sprayed on a thin coat of Tamiya gloss for the
decals.
Decals
My original
plan was to use the VF-143 decals from the Academy F-14 I ruined.
That plan ended when I discovered how awful the older
Academy decals are so I bought an Eagle Strike sheet that had the same markings
as the Academy one and the quality of the decal material much better.
Decaling
the Tomcat was tedious as relatively modern jets are prone to be thanks to the
number of maintenance stencils and “No Step” markings (all from the Hasegawa
kit.)
The Eagle Strike decals only really needed MicroSet to get them to stick
to the Tomcat.
The only area that proved to be an issue were the tail flashes,
but Eagle Strike provided extra solid blue decals for that reason.
It took
several months on and off to complete the decals.
I also actually made the effort to mark and cut the port
side US Insignia and the VF-143 flash to fit the step and ladder as I wanted to
build the model with the crew steps and ladder out.

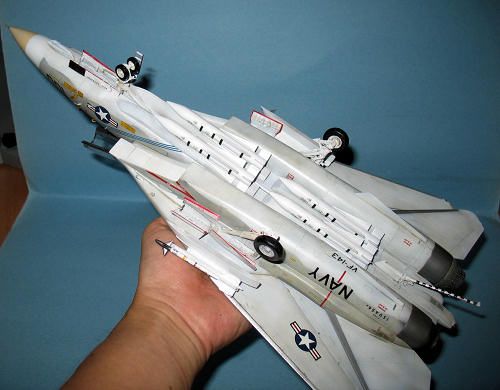

Wash
Carrier
aircraft are dirty by nature thanks to the corrosive environs of the sea and the
long operations tempo of a carrier deployment.
I tried not to make it too dirty as
I used the
Tamiya makeup set... um, weathering kit to add a lot of grime specific areas
like the rear deck where maintenance crew walk around and the area between the
stabs and the fuselage.
I spent a lot of time dirtying up the wing pivot as that
area was usually
pretty grimy.
Finally, I added a watercolor wash to darken the panel
lines (but faintly.)
It took a long time as the Tomcat is a very big cat
indeed.
Once the excess was removed and the construction was complete, I sprayed on two thin coats of Future gloss and then added a coat of Xtracrylic Satin Coat when I discovered that the Future was too shiny.
FINAL CONSTRUCTION |
Note:
The wings and the fuselage inserts behind the wings were
added after painting, but before the wash.
There are some gaps between the inserts and fuselage.
I used Vallejo Plastic Putty to fill in the gaps and
painted the white putty Xtracrylic Dark Gull Grey with a brush.
It isn’t very pretty, but it looks better than seeing a
gap.
I suggest that you glue the fuselage inserts first, fill, mask and paint
it separately than what I did.
If you don’t have Vallejo Plastic Putty, I’m told that
Dry Wall Spackle is a decent non lacquer based filler substitute (assuming you
don’t need to polish the surface.)
There is a noticeable gap between the back of the pilot’s tub and the
forward portion of the
I removed
the True Details Tomcat Ejection seats from their pour stubs and painted them
(airbrushed a base coat of flat black and then hand painted.)
I removed the ejection loops from the kit seats and
glued them to the True Details Seats (the loops were hand painted.)
Everything was going well till I discovered that I
should have removed the plastic mounting pegs for the kits seats as the resin
seats sit about an 1/8” higher than they should be.
It was too late to sand down those pegs before I
installed the cockpit tub or sanded down the ejection seats.
I did nothing as I realized
that this extra height would only be noticeable if the canopy were down.
Next I
added the Royal Resin Wheels which are much more stable (chemical wise) than the
Hasegawa supplied metal rims and rubber tires.
They look the part and require only some careful
drilling of the mounting holes.
A small dab of CA glue was all it took to secure them to
the model.
The various
tiny antenna, doors, ladders, steps and probes were added.
This is probably the part I dislike the most, but this
is where I make the most mistakes because I rush things.
Assembling the boarding ladder required some careful
work as some of the parts were Hasegawa provided PE.
The red on the sides of the ladder were hand painted.
Once everything was dry, I glued it to the side of the
Turkey.
Now it was
time to arm the Tomcat.
I opted for the early warload of four
Next I had
to add the canopy.
It has that mold seam in the middle that needed to be
sanded/polished out.
I am usually hit or miss with dealing with these seams.
Sometimes, it works out great.
Other times, no matter how fine a grit or polish I use
that I can never get out all the scratches.
Unfortunately, this was one of those times.
The canopy was masked then painted flat black interior
and light gull grey exterior.
The various plastic and PE bits were added;
the PE stuff was a pain (especially the interior frames
with mirrors), but it does make the canopy look much better.
It was all glued in with white glue.
The
The windscreen was masked and painted flat black. Once it was dry, I removed the center mask and sprayed on clear green for the HUD and then glued it to the F-14. For those who don’t know, the F-14A/B models had the HUD as part of the windscreen glass instead of a conventional HUD like its contemporaries such as the F-15 which is why you need to paint it clear green. The F-14D had a conventional HUD.
CONCLUSIONS |
I’ll admit
that I did a bit of a victory jig when I had this Tomcat sitting completed on my
shelf.
Why not?
Two colossal failures and a whole lot of modeling bad mojo were
erased with its completion.
The
Hasegawa F-14 is not for the faint of heart or those who like their models kits
to be frustration free.
The end result is impressive, but getting their will
take a lot of effort and patience.
It does require a lot of careful assembly and I highly
recommend reading
David Aungst’s Hyperscale build article as it addresses most if not all of the
issues with this kit.
This is a kit that is for advanced modelers (or those
who want to enjoy a real challenge or feel only alive when frustrated.)
By itself the kit is okay, but the extra details do make
a major difference in the end result.
Whooohooo!!
I finally finished (as in completed not as in completely
wrecked) a Turkey,
It took some eight (!) long years, three model kits, a
lot of hair pulling and enough four letter words to blister the paint off an
aircraft carrier, but I finally have an F-14 done.
For those wondering, I do not run around with this model while “Highway to the Danger Zone” blares from my speakers on a regular basis--I’m kind of ashamed that I loved Top Gun as a teen considering now that as a sort of mature adult male I realize the movie really does stink outside of the flying scenes and the soundtrack. Okay, I did it once... I swear.
REFERENCES |
F-111 by Bill Gunston
Tomcat! by Rear Admiral Paul Gillcrist (ret)
Wikipedia
The Final Countdown
Top Gun starring Tom Skerrit, Michael Ironside, Val Kilmer, Kelly McGillis, and a guy named Tom Cruise.
