Tamiya 1/35 Sd.kfz.9 18T FAMO Halftrack & Trumpeter 21cm Mörser 18

KIT #: 35239/02314
PRICE: $65.00/$45.00 SRP
DECALS: Four options/No options
REVIEWER: Blair Stewart
NOTES: Tamiya 35186 German Fuel Drum Set; Trumpeter 06610 21cm ammo pack; assorted items from the armor scrap box

HISTORY

FAMO – The Sd.Kfz. 9 or "FAMO" was a large German half-track that the Germans used widely in World War II, and the heaviest half-track vehicle of any type built in quantity in Nazi Germany during the war years. It mainly served as a prime mover for very heavy towed guns and as a tank recovery vehicle. Germany produced about 2,500 FAMOs between 1938 and 1945.

 The Sd.Kfz. 9 had a ladder frame chassis. A Maybach 12-cylinder, water-cooled, 661.4 cu in HL 108 gasoline engine churning out 270 horsepower powered the vehicle. The Maybach engine was lashed to a syncromesh ZF G 65 VL 230 transmission with four forward and one reverse gear. It had two fuel tanks with a total fuel capacity of 85 gallons. The vehicle used both its tracks and wheels for steering. The steering system was set up so that shallow turns used only the wheels, but brakes could be applied to the tracks the further the steering wheel was turned. The drive sprocket, like all German halftracks, had rollers rather than the more common teeth used on other vehicles. The rear suspension consisted of six double sets of overlapping, interleaved road wheels mounted on swing arms that were sprung by torsion bars. An idler wheel, mounted at the rear of the vehicle, controlled track tension. The front wheels had leaf springs and shock absorbers.

 The upper body had a crew compartment common to all versions. This had bench seats, one for the driver and his assistant, and another for the crew. The rear portion of the upper body was adapted for the vehicle's intended role. The windshield could fold forward and was also removable. A convertible canvas top was mounted at the upper part of the rear body. It fastened to the windshield when erected.

The Sd.Kfz. 9 had a towing capacity of 28 long tons (28 long tons; 31 short tons). This was adequate for medium tanks like the Panzer IV, but two or sometimes three or four Famos were necessary to tow heavier vehicles like the Tiger I, Panther or King Tiger.

 Ernst Kniepkamp of the German Military Automotive Department did the preliminary design of all the German half-tracks of the early part of the war before the Nazis came to power in 1933. His designs were then turned over to commercial firms for development and testing. Fahrzeug- und Motorenbau GmbH (FAMO) of Breslau received the contract for the 18 ton heavy towing, tracked vehicle. FAMO completed its first prototype in 1936. The first prototype had a 200 horsepower Maybach HL 98 TUK engine and was only (25 ft) long. The second prototype model appeared in 1938, but differed only in detail from its predecessor.

 The third prototype appeared in 1939 and was the production version. The design was simplified over the course of the war to reduce costs and the use of strategic metals. Some vehicles produced by Tatra used a 12-cylinder, air-cooled diesel engine for motive power.  Large spades added at the rear of the chassis during the war improved the vehicle's ability to recover tanks and other heavy vehicles.

 88mm Flak 18 anti-aircraft guns were mounted on fifteen Sd.Kfz.9s in 1940 for anti-tank duties. The crew and engine compartments were lightly but completely, armored, which limited the gun's ability to fire directly ahead. A platform with drop-down sides was fitted for the gun. Outriggers were necessary to brace the platform sides to support the weight of the gun crew. The vehicle weighed 25 tons, was 30.6 ft long, 12.0 ft tall and 8.7 ft wide.

21cm Mörser 18 – The Germans designed the Mörser 18 to replace the obsolescent World War I-era 21cm Mörser 16. While the gun design itself was nothing innovative, the same cannot be said for the “elaborate” carriage. It was one of the first weapons, if not the first in quantity production, that used the interesting dual-recoil system. The barrel recoiled normally in its cradle, but, in addition, the whole top carriage, which carried the barrel and its cradle, recoiled across the main part of the carriage. This system damped out the recoil forces and created a very steady firing platform. This carriage was also used for the 17 cm Kanone 18 in and the 15 cm Schnelladekanone C/28.

 The Mörser 18 was a huge weapon that was transported in two pieces, as was common for such large weapons. For travel the barrel was slid on to a separate trailer. The carriage carried an integral firing platform that was lowered to the ground when emplacing the howitzer. The wheels were then cranked up off the ground and it was now ready for firing. A rear castor-wheel jack was used to raise the rear spade off the ground if the gun needed to be traversed more than the 16° allowed by the gun mount.

 Production of the Mörser 18 began at a low rate in 1939 shortly before the war began. The Germans canceled production in 1942 in lieu of its smaller brother, the 17 cm Kanone 18, which could fire almost twice as far, but resumed production of the Mörser 18 in 1943.

 For firing and orientation, the gun’s carriage was supported by two base plates: the main, circular base plate, on which the gun rested by means of a pivot; and the rear rectangular base plate with a traversing gear. The whole carriage was simply rotating on the main base plate, adjusted by the traversing gear in the 16 degrees range.

 When the gun crew had to radically change the gun’s direction of fire, they raised the rear base plate from the ground and then traversed the whole gun by hand in any direction (360 deg. Range). During this movement, two rollers riding at the edge of the main base plate supported the gun. Some sources claim the roller system was good enough to allow the gun to be rotated by only one man. After rotation, the crew lowered the rear base plate and anchored the gun in its new firing position.

THE KIT

I have always enjoyed war movies in which real period equipment is used, and the first time I saw “The Dirty Dozen” I was fascinated by the large German halftrack used in the final scenes. I was convinced at one time that the halftrack was indeed a FAMO. Alas: dreams are inevitably dashed. The vehicle was actually a Sd.kfz.8 12 ton Halftrack, and my image of war movies was forever destroyed (never mind the simple fact that, if one truly wanted to escape a rather dire situation, and do so quickly, one would definitely NOT pin one’s hopes on a 12 ton, probably governor-limited, halftrack). Being the largest halftrack that ever existed, I have longed to build a 1/35 model of this beast, so when Tamiya released their beautiful kit in December, 1999, I began plotting the day when I could add one to my collection and eventually assemble it. But the initial price deterred me for several years – thank goodness for EBay! I found one for a somewhat better price, purchased it, and put it in the stash for a rainy day.

Enter Trumpeter, the upstart Chinese would be heir to the Tamiya throne. As they released kit after kit, it wasn’t long before they entered the realm of the heretofore never released 1/35 subjects, such as the 21cm Mörser 18 artillery piece. At last, I had the perfect complement to the FAMO, so I decided to embark on a project to build these two kits together as a “single” model (in fact, the Trumpeter box art appears to depict a FAMO towing the Mörser, so this was even more incentive for me to link the two together in a protracted build session).

Tamiya FAMO – In keeping with Tamiya’s precision molding, there is not a hint of flash on any of the parts in this kit. Molded in Tamiya’s traditional tan colored plastic, the kit consists of some 402 parts on 11 tan sprues, three brown sprues containing the 196 parts for the two part track links, three soft rubber tires, a small acetate clear sheet for the windshield, seven poly caps, and a length of thread for the tow cables. The chassis is molded as a single unit, with separate assemblies for the torsion bar covers and transmission. The winch assembly, which mounts under the chassis, is made to pivot so it can reel out the attached tow cable made from the included thread and a plastic tow cable end loop.

While I have grown to dread individual track links, I must say that the ones for this kit are a pleasant surprise: when assembled correctly, the tracks actually work and are completely flexible just like the real thing - a great bit of kit engineering on the part of Tamiya. The advantage to this is that, once assembled, the tracks can be rolled onto the drive sprockets and idlers and then their two ends linked together, and this is a great innovation over individual link tracks that are not flexible when assembled.

In addition to the working winch, the kit includes a workable tow par that can be used to attach almost any German vehicle to the FAMO. It even includes a scale locking pin for securing the vehicle to the tow bar.

 The kit also includes eight figures that can be posed in a variety of positions and used to relay just how big this vehicle is. Tamiya has created excellent small details in the form of the pedals, shift levers, and the dashboard gauges.

The engine compartment includes a reasonably detailed Maybach engine that could be super detailed by those that are so inclined. The dual exhaust system is nicely molded and runs the length of the vehicle, exiting the back.

The kit includes decals for four different vehicles with color schemes running from panzer gray to German yellow to German yellow with a brown and green camouflage pattern. Tamiya breaks its 20 page instructions down into 32 illustrated steps, and they are excellent.

Trumpeter Mörser 18 – When I decided to purchase this kit, I had no idea what I was in for: another kit with over 400 parts, many of them very small and finely detailed. I have to say it is one of the more complex kits I have built to date, and the small plastic parts, while adding to the detail, also add time and tedium to the overall assembly process.

The 400 plus plastic parts, which are molded in light gray styrene, are contained on 11 sprues. As in the Tamiya kit, the parts are virtually flash free and very finely detailed. In addition, the kit contains two large and two small nicely molded rubber tires for the chassis. In keeping with the multi-media trend of today’s kits, the kit also contains two metal springs, two brass tubes, and one fret of photo-etched parts. The kit contains no clear parts or decals.

There are several plastic parts that are not used in the kit’s construction, and these can create some confusion during the assembly process if one is not careful. One trick to consider is removing these parts prior to construction so that you can actually see when a sprue is complete or empty (can’t tell you how many times I’ve had to fish a tossed sprue out of the garbage can because I “thought” it was finished, or how many parts I’ve had to make from scratch because I either lost them, broke them, or accidentally threw them away).

Finally, the kit’s 24 page instructions booklet contains 25 separate assembly steps. Trumpeter’s assembly instructions approach of indicating where a part should go via an arrow from the part to its location on an assembly can be very misleading at times, and one must sometimes study additional or later steps in the instructions to really understand where a particular part is to be placed.  A final, nice touch is a full color painting and marking guide, which provides three views of the model and a complete model paint reference.

CONSTRUCTION

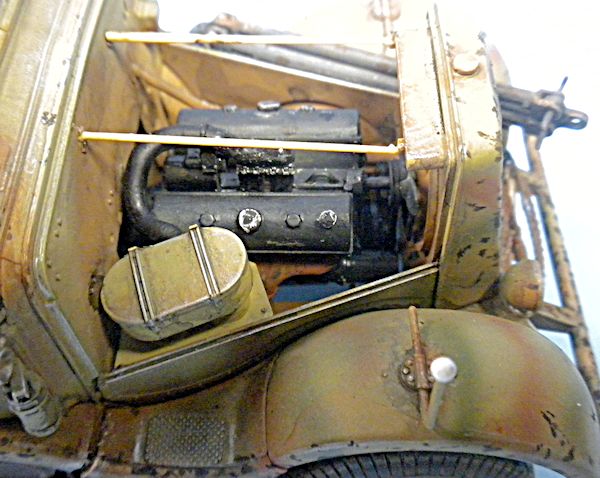

Tamiya FAMO – I started by assembling the Maybach HL108 engine, which one assembles in four sub-steps. After assembling the engine, I chose to not paint it and brush paint it later when I glued it to the chassis, but one can just as well airbrush it and set it aside for later attaching to the frame. The next step involved assembling the chassis and mounting axles and other items to the chassis and frame.

In step three, I assembled the G65VL230 transmission and the air tank and set them aside. In step four, I glued all of the torsion bars to the chassis and mounted the engine, transmission, and air tank on the chassis frame.

In step five, I assembled all the idler and road wheels and the right and left drive sprockets. The drive sprockets wedge a poly cap in between the inner and outer assembly so that the sprockets will rotate on their mounting axles, and this is a very useful feature when one goes to put the tracks on the vehicle.

In steps 6 and 7, I assembled the left and right exhaust systems and mounted them to the frame. I also installed the road wheels, idlers, and drive sprockets at this point. Step 8 involves the assembly of the five part front wheels. I left the tires off for later installation after painting the vehicle.

In step 9, I assembled the well-detailed front axle and suspension system. This involves 11 finely detailed parts. I set this aside for later attachment to the chassis frame.

Step 10 guides you through the assembly of the intricate coupler (hitch) assembly and towrope guide for the rear of the vehicle. The coupler assembly includes 10 parts with a poly cap to allow the assembly to be removed from the vehicle. The hitch transition has movable parts to allow the coupler to be adjusted to various heights and orientations, depending on what one wants to hitch to the FAMO.

I then glued the front suspension (Step 11) to the chassis, popped on the coupler assembly, and installed the remaining road wheels. In steps 12-13, I assembled the winch and wound the included rope, which simulates a steel tow cable, around the winch’s take-up spool. I then attached the take-up spool via a poly cap to the winch itself and glued the complete mechanism to the underside of the chassis.  I then attached the steering box and arm to the front of the chassis.

In step 14, I began assembling the tracks. These are composed of 47 finely detailed links that are held together by the road pads, which are glued on top of the link connection. If done right, this results in a neat articulating track assembly - a coup, in my opinion, for Tamiya kit engineering. I set both tracks aside for later painting.

Steps 15 and 16 involved assembling the grille and radiator and front headlights, and then gluing these and the front bumper to the front fender assembly. I also assembled the driving compartment floor. In steps 17-19, I completed the intricate assembly of the crew cabin and instrument panel, finishing this by assembling the steering wheel and column into the crew cabin. In step 20, I attached the front fender assembly, the crew cab, and the lower engine compartment side covers to the chassis.

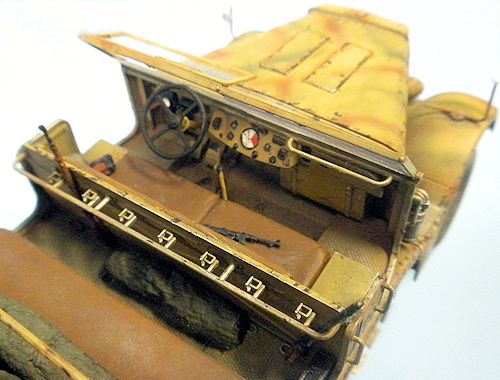

Steps 21-22 involve assembly of the air cleaner and the windshield, which includes a driver’s windshield that can be displayed open or closed. I then attached the two fender side platforms to the fender, installed the air cleaner in the engine compartment, and glued the hood support rods to the firewall and radiator.

The next major assembly was the rear cargo or flatbed assembly (Steps 23-25). This goes together flawlessly, but I didn’t think ahead enough when I decided I would wait to install the spar tire and its holder (trying to plan ahead for painting). I later found out what a problem it was to try and install the spare tire and holder after I had attached the cargo bay to the chassis. In step 26, I glued the flatbed to the chassis, and this sealed my fate for the later installation of the spare tire and holder (oh well: live and learn).

Step 27 covers the assembly, posing and painting of the included figures. I only opted to use one of the kit’s figures: a standing figure in coveralls. In step 28, I mounted all of the grab handles to the body and the position markers/mirror to the front fenders. Step 29 involved the assembly of the various toolboxes and jack that comes with the kit. The toolboxes can be mounted inside of the side storage areas or in the flatbed. Finally, in step 30 I assembled the finely detailed draw bar. I planned originally to stow this in the flatbed cargo compartment, but, after seeing several examples of assembled FAMOs on the web, I decided to mount it on the front fender. This in turn gave me more room in the cargo bed for additional tools, equipment, and sundry other items.

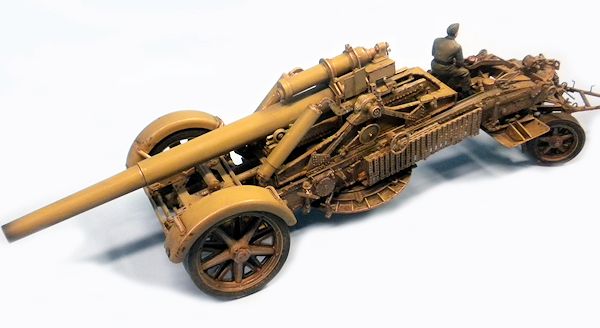

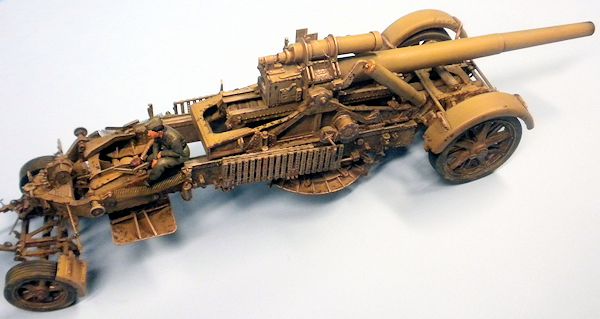

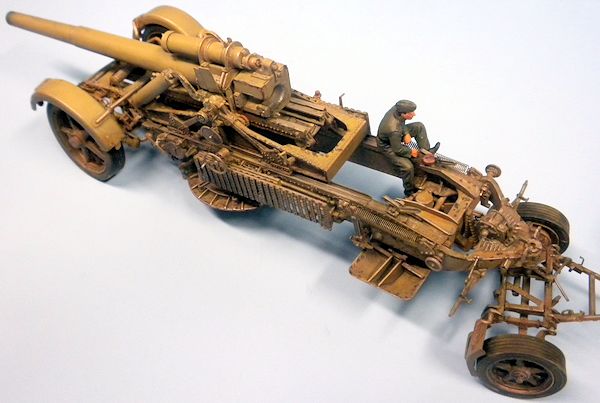

Trumpeter Mörser 18 – As I stated earlier, the idea of tackling this kit was daunting to say the least, but I was determined to see it through, so I dove in at steps 1-2: the assembly of the gun carriage’s main frame. As a matter of fact, the carriage itself is not completed until step 9 and probably some 50-60 parts later. Many of these parts are very petite, and require considerable care to glue to the carriage assembly. At step 9, one must decide on how the model will be displayed; i.e., in the combat or travel mode. Since I was going to display the gun being pulled by the FAMO, I opted for the travel mode. A caution: whichever mode you choose, make sure you thoroughly study the instructions, the box art, and the coloring guide, since the instructions alone are a little fuzzy with regards to positions of various components when in the combat versus travel mode. I had a hard time with this, and found myself at later steps realizing I had glued some pieces in the wrong orientation, requiring me to “unglue” them and reattach these properly.

In step 10, I assembled the movable yoke to which the rear road wheels are attached later in the assembly. In step 11, I used the two supplied steel springs to “articulate” the yoke. I later discovered these to not be strong enough to hold the yoke in the correct travel position, and I ended up drilling a small hole in the side of the carriage and then another in the yoke arm, and used a small steel pin to hold it in its proper traveling position.

Steps 12-13 are where I first got into trouble regarding orientation of components; namely, the positioning of the treadle plates for the travel mode. The instructions seem to indicate that these are deployed or down in the travel mode, but both the box art and the coloring guide plainly show them stowed in the up position for the travel mode. Unfortunately, I did not follow my own advise of careful study of the instructions, and later had to correct this mistake (had I done so, I would have noted that step 25 – the last step -  shows the proper orientation of the treadles for traveling).

In step 14, more components are added to the complex main carriage, and the large wheels are assembled here. I left the rubber tires off to accommodate painting.

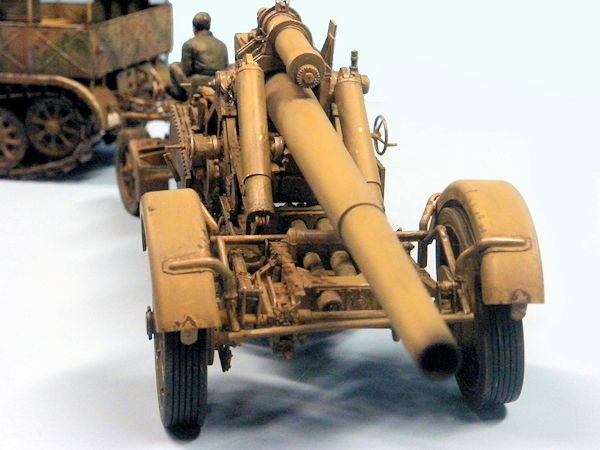

Steps 15-19 involve assembly of the gun and its main carriage or cradle. Both are very detailed sub assemblies and look great when completed. I have to say I ran into a slight problem at step 19: the assembly of the two pistons that elevate and lower the gun. The outer housing is brass, while the inner pistons are two plastic parts that are glued together. When I glued the pistons together, I found they did not fit very well into the brass housings, so I had to sand, fit check, and sand these pieces until they would move freely within the brass housings. In the process of installing these and checking them on the gun, I managed to break off one of the delicate “bumps” that allows the piston to rotate on its axis when the gun is elevated and depressed, and that became a continual hassle until I finally placed the gun in its display configuration (in hindsight, I could have just glued the pistons in their down position for the travel mode, but I have to admit it is kind of neat to have them working like the real thing!).

After assembling the gun and its cradle/carriage, I started the front axle and suspension for the smaller road wheels (Step 20). Here, I encountered the first of the dreaded photo etch (PE) parts, and they were a doozie, requiring me to bend the PE parts in several different orientations. Given my lack of patience, I gave up after numerous unsuccessful attempts to bend one of the PE parts, and decided to leave them off. This decision was supported by the rationalization that these particular parts were on the inside of the suspension system and would not be missed or seen by the “less than casual” observer.

In step 21, I assembled the small road wheels and the nicely detailed tow bar, which I did not glue to the front suspension, as it is made to articulate (a nice feature when mating the gun carriage to a vehicle like the FAMO).

Steps 22-23 involved attaching more PE for the rear wheels and nice PE parts that go on the fenders. I then mounted the two smaller fenders to the rear suspension and the larger two onto the main gun carriage. Finally, in step 24, I mounted the gun and its cradle/carriage onto the large road carriage. I did not glue the gun to the road carriage, and this aids a lot in the painting process, plus provides the option to take the gun off the travel carriage if one later chooses to do so.

COLORS & MARKINGS

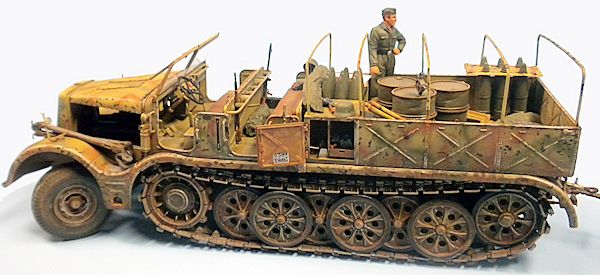

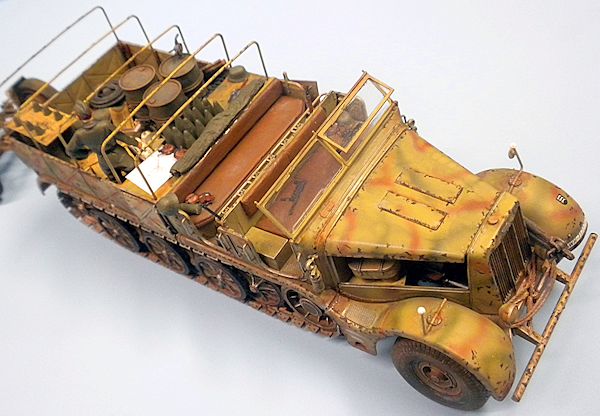

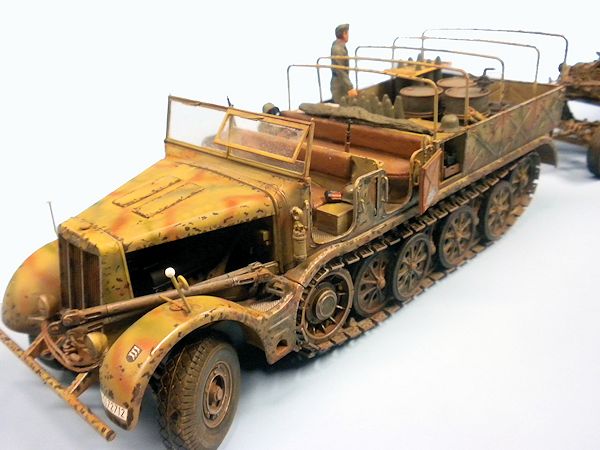

Once I assembled both kits, I moved to the paint booth (or basement, as it really is). For the FAMO, I had decided on the color scheme of the 237 StuG Brigade in Russia, 1943, consisting of dark yellow with red brown and dark green thin stripes. For the Mörser 18, I chose a basic dark yellow. I intended to weather both models heavily after completing the painting process. I also chose to use all Tamiya paints for the vehicles, but, of course, thinned with lacquer thinner instead of the safer thinning solutions (like water!). Again, my old habits die hard, and I have been using lacquer thinner as a universal thinner for some 40 years now, and I guess I am addicted to it (and, yes, you can thin acrylic paints with it). The vehicle colors, then, were Tamiya XF-60, Dark Yellow, XF-64, Red Brown, and XF-61, Dark Green.

For both models, I chose to employ the “color modulation” painting technique. I describe this technique in my earlier build of Dragon's Elefant with Zimmerit. It is essentially a technique to provide gradation in the vehicle’s color by applying three main levels of color - light, medium, and dark. It also requires mixing several different shades of paints, so make sure you have some spare mixing bottles handy.

After spraying the basic dark yellow color schemes with my faithful Paasche HS single action airbrush, I used an Iwata Eclipse HP-CS gravity feed double action brush to carefully paint the brown and green camo stripes on the FAMO. I then sprayed the FAMO tracks with some old Pactra steel that I have had for more than 30 years. For all other items requiring painting, I brush painted these using a combination of Model Masters and hobby acrylic paints, including Vallejo’s Model Color #70-830 German Field Gray for the figures’ uniforms and various pieces of equipment such as helmets that I would later place in and on the FAMO.

There are only decals for the FAMO, and I used the kit supplied decals to model the Russian front vehicle. Since the markings are somewhat scant for these vehicles, rather than coat the entire model with a gloss coat, I chose to place each decal in a puddle of Future Floor Wax. This works quite well, and avoids having to apply an overall gloss coat followed by a flat coat.

Weathering – for both models, I used a variety of weathering techniques. First, I applied a thin dark acrylic wash, cut with water, over each model to bring out the various highlights. I was careful to wipe up any excess with a Q-tip. After I was satisfied with the wash, I moved to dry brushing each model with Testors Rust (although this is more like a brown color) in places where rust would normally tend to form. I then dry brushed a light tan acrylic to simulate dust over both models, particularly on the wheels.

The most tedious weathering I did was the addition of paint chips to both models. I did this using dark brown acrylic paint and a very fine paintbrush to paint every paint chip. This is extremely time-consuming, but, if done correctly, very rewarding in terms of achieving a very realistically weathered model. I then ground up some light tan artist’s chalk and brushed this on the model for additional weathering. The final weathering touch was the use of a Prismacolor Metallic Silver pencil to highlight worn steel edges on both models.

FINAL CONSTRUCTION

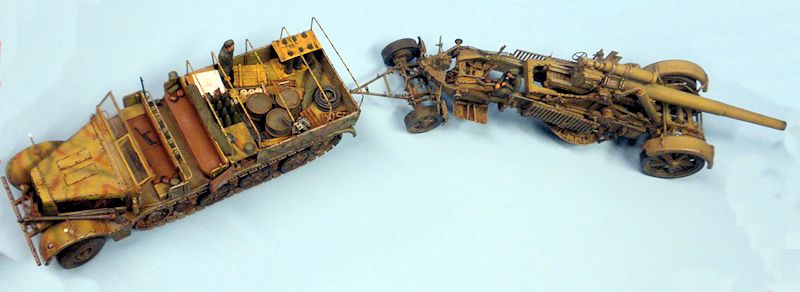

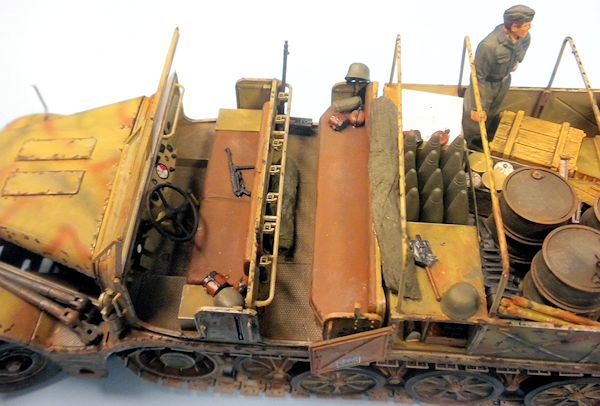

The FAMO is a great kit by itself, but the huge cargo bay and crew compartment cry out for accessories, so I started looking for things to fill add to both. First, since this FAMO is hauling a 21cm artillery piece, I needed artillery shells, casings and powder bags. After visiting the web, I discovered that Trumpeter makes a 21cm ammo accessory kit (06610) for the Mörser 18, consisting of not only plastic rounds but also brass shells and casings. The next problem was that one can’t just toss artillery shells in the back of a FAMO: they need to be secured in some fashion for stowage. So here I went two ways: first, I scratch built a wooden ammo crate out of sheet styrene for six shells (note: I have no idea whether this is accurate for the period – I just happened to see such a crate in a web search, and decided that it made since for large shells like these, so built it. I think it looks pretty neat, even if it isn’t period-correct).

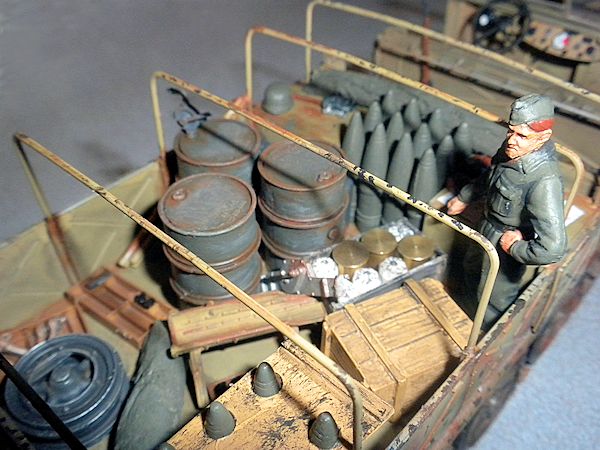

I then decided to stash 9 additional rounds in the cargo bay space between the two side tool compartments. I installed a thin piece of PE across the open space to simulate some type of restraining bar that might be used to keep the shells from rattling around in the FAMO while underway. After a lengthy search of the web, I decided to paint these shells German field gray, which seemed to be the most consistent color in artillery round references I was able to find for 21cm German artillery rounds.

I also needed a box for the powder bags and shell casings, so I again scratch built one out of sheet styrene and brush painted it to simulate wood.

Next, I assembled, painted and weathered drums and jerry cans from the Tamiya German fuel drum set (35186) and set these aside. I added a Mauser KAR-98 rifle and a MG-34 with ammo box to the back seat of the crew compartment, plus placed an MP-40 on the driver’s seat. I painted and installed various pieces of German equipment around the vehicle. I placed the spare wheel from the FAMO kit in the cargo compartment and a number of tools, D rings, and the shell loading device from the Mörser in there as well.

I then soaked some pieces of Kleenex in a diluted white glue solution and rolled these up to simulate tarps. After these dried, I painted them and then placed them on the vehicle. The final touch was a topographical map I got from the web and reduced to scale size on my computer/printer.

The final task was to paint the two figures: one from the FAMO kit that would be in the cargo bay, and a sitting figure I had in the spares box to go on the Mörser 18.

CONCLUSIONS

Well, after almost 1,000 parts, I can truly say this was quite an accomplishment for this old glue head. When I started this project, I didn’t think I would ever get to the finish, but persistence paid off. Both of these kits are outstanding in terms of their detail, molding and assembly, and I think they look great once they have been assembled. The Mörser 18 is a little more tedious/complex than the FAMO due to the larger number of very small parts, and the Trumpeter instructions are not quite as good as the Tamiya instructions. Both kits present the modeler with a host of options in terms of display, settings and dioramas. I highly recommend both kits to armor modelers, especially those with experience in building today’s multi-media armor kits.

REFERENCES
“Sd.Kfz.9,” Wikipedia, March 20, 2013.
“21 cm Mörser 18,” Wikipedia, February 25, 2013.
Ashley, Terry, “
SchwerShick, Dave, “21cm Mörser 18 (1:35) In-Box Review,” Armorama, 2013.
Zugkraftwagen 18t (Sd.Kfz.9) "FAMO,"
Perth Military Modeling Site, July 15, 2008

Blair Stewart

June 2013
