Dragon 1/35 Jagdpanther
KIT #: 9012
PRICE: $5.00 second hand
DECALS: Generic options
NOTES: Modified to a late model Jagdpanther


The Panther family of tank started life in 1941, when the Germans encountered the Russian T-34 and found themselves up against a rather formidable foe. The Jagdpanther was ordered in 1942 as a tank destroyer based on the Panther tank chasis and the 88mm gun,  however it was only put into production in early 1944 after a rather extended development phase. Other than the hatches mounted on top of the extended superstructure, the Jagdpanther differed in only a small number of parts from a standard Panther tank. At 46 tonnes and powered by a 12 cylinder, 23.1 litre engine it could hit a top speed of 45kph and had a range of 160kms (on road). Its performance was good, as it suffered little of the mechanical teething problems of early Panthers due to the incorporation of an upgraded transmission.  Armed with the excellent 88mm Pak43, an experienced crew could hit targets 3000 meters away.

  Only 392 machines were built, however different sources site up to 425 produced as production continued right to the last days of the war. Many of the tanks were altered and/or added to in the field; these included the deletion of pistol ports, adding of Panther G components, larger idler wheels, exhaust arrangements, 90mm NbK 39 close defence weapons, installation of crew compartment cooling fans and deletion of storage bins to name a few. Most machines served on the Eastern Front, but small numbers were encountered in Normandy and later on in the Battle of the Bludge where 6 battalions took part.


Typical of the ‘Imperial Series’ of Dragon armour there are no magic tracks, zimmerit, metal barrels or photo etched included.  Although the instructions guide you towards constructing an early model Jagdpanther, the bolt on gun mantlet, alternate style drive wheels and machine gun housing are included (and were used) to make a late model tank, however the two part barrel isn’t.  Most of the kit is flash and defect free, apart from the tracks. Around 20 of the track links in this kit were unusable and the rest require clean up, all 172 of them. Fortunately there are around 200 links included.


I decided straight away that due to the total lack of interior detail I would button up all the hatches. This simplifies construction of the upper hull as everything apart from the tools, cleaning kit, extra track links and exhausts were glued on.  Once dry, the lower hull was fixed to the superstructure. Careful fitting will ensure virtually no clean up on the joints.

 Problems arose when I decided to add photo etched grills as I thought the kit looked incomplete without them. I found several available from different manufacturers however they were all different sizes. To my dismay, when measuring the Dragon kit, the dimensions of the grill is different to every aftermarket set I could find.  The Arber set was the closest, so I added some plastic to the insides of the grill openings. After some filling and sanding, it worked out pretty good. Thanks to the guys from BNA Modelworld too for measuring each of their sets for me to work out which was closest.

With most of the tank built I turned my attention to some details. I had decided on building a late model vehicle of Pz.Jg.Abt 654 delivered to the group in late 1944 or early 1945 which meant I had to do some kit bashing.  Steel cable tie down hooks were mounted all over this vehicle, along with tie down hooks and clamp rings to the barrel. I scratch built these with thin copper wire I got from an old extension cord I cut up and some copper sheet. The barrel cleaning kit was also moved to the back engine deck. The mounts for this were scratch built out of copper sheet and glued to the surface (minus the cleaning kit).

I dug through the spares box to see what I could come up with to make the 2 part gun barrel. I found a section of tiger tank gun which was perfect. I chopped off a large portion of the kit barrel and glued the two parts together.  I knew it would need some filler between the barrel and the cast section of mantlet but this was nothing some Squadron white putty and wet sanding couldn’t handle. I also pinched some flame dampeners from another panther kit I had. Finally I added the side skirt mounts and it was onto the tracks.

I broke the tracks down to 7 separate sections each. As mentioned, each link required clean up of flash on the mating surfaces which was a real pain. Once glued together I brush painted each section Gunze Steel and set them aside to dry.

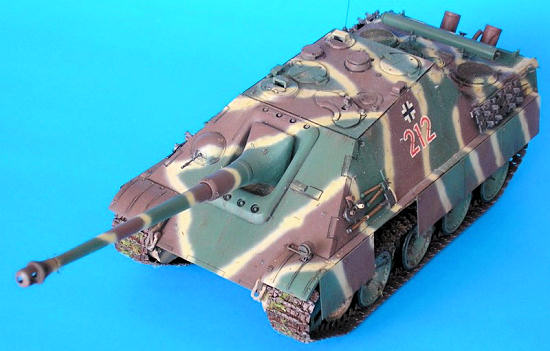

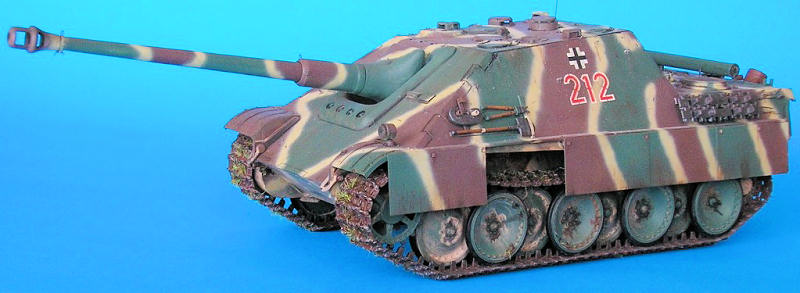

I panted the whole tank, the barrel, road wheels and skirts Humbrol 30 green. I then airbrushed on Humbrol 160 German red brown. While letting this dry overnight I brush painted the black rubber on the road wheels. Gunze 79 sandy yellow was applied the next day and the whole tank was allowed to dry another day before moving onto a gloss coat of Humbrol.

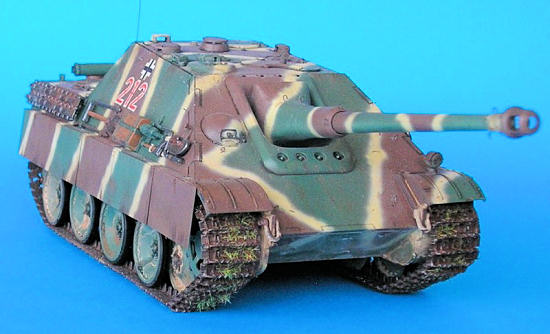

Now the fun part, weathering. I decided to weather the lower hull first. This was done using the Mig Pigments of dry mud, earth and black. First I simply brushed on dry mud mixed with water and dishwashing liquid all over the wheels and hull. At this stage things will look horrible but don’t stress, let it dry. Once dry, I did the same in places with the earth pigment. To make clumps of mud, I used water based matt medium mixed with Mig pigments and applied to areas where mud would collect. I also added in some static grass to this mixture. I brushed on dry ‘rust’ pigment to the tracks and used the matt medium to add clumps and grass to them too before sealing the lower hull, wheels and tracks with Humbrol Matt coat. After another night of drying, the wheels and tracks were glued on, some final, oily stains added to the bolts on the wheels and it was onto the superstructure.

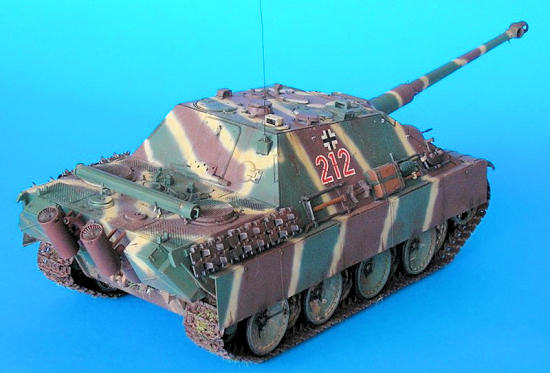

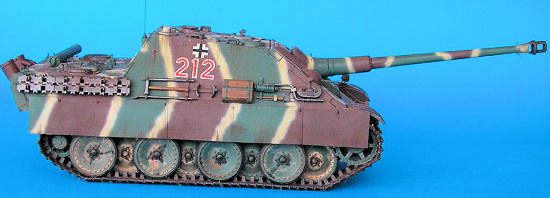

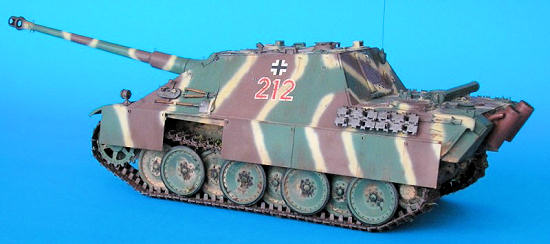

I started by gluing on the side skirts and applying the Red Brown and yellow to them. I also painted and glued on the cleaning kit, tools, exhausts, barrel and applied the decals.  After this I washed the superstructure with black pigment mixed with water and painting on chips and scratches with Gunze steel. Dust, grimy and rusty streaks were then added to the tank randomly. Finally a radio antenna was glued on from fine copper wire and the whole kit was sealed with Humbrol Matt.


I started this model with the intention of it being a more relaxed build, but it quickly turned into a far more involved project than I imagined. This is still a decent kit, but has been rendered obsolete at retail price by the newer Dragon armour with all the bells and whistles included in the box. The Arber grills and skirts cost me $25 bucks in total. Therefore, if you can get these older ‘red box’ Dragon armour models for the right price, add some aftermarket photo etch and you will end up with a pretty good looking tank for half the cost of the more modern Dragon kits.


 ‘Unknown Version of the Jagdpanther’ by Krzysztof Mucha, Mititaria Magazine, June-July 2004.


 Brad Gaff

March 2011
