Hasegawa 1/48 F4U-5N Corsair






See Review


Tom Cleaver




The F4U-5 was the ultimate Navy development of the Corsair series as a fleet defense fighter. The first prototype took to the skies December 21, 1945. It differed from previous Corsairs by having an even longer nose, a raised cockpit, and all-metal wings. Powered by a Pratt and Whitney R-2800-32W providing 2,450 h.p., the F4U-5 was the fastest piston-engine aircraft to ever operate from a USN aircraft carrier: 462 mph at 31,400 ft. Armament was upgraded from .50 caliber machine guns to four 20mm cannon as standard, with provision for two 1,000 lb. bombs and 8 5-inch HVARs. Of a total 568 F4U-5Ns produced between 1946-49, 223 were F4U-5, 214 were F4U-5N, 101 were winterized F4U-5NL, and 30 were F4U-5P photo recon aircraft.

The F4U-5N radar-equipped night fighter first went to war with VMF(N)-513, "The Flying Nightmares," in 1950. The aircraft first provided night close air support for the First Marine Division during the breakout from the Chosin Reservoir in November-December 1950. Following the ejection of U.N. forces from North Korea by the Chinese, the Corsairs operated in the night intruder role, attacking North Korean and Chinese truck convoys and supply trains.

The F4U-5N also served with the Navy's Composite Squadron 3 (VC-3), the Pacific Fleet night defense squadron, equipping four-plane night and all-weather fleet defense detachments aboard the carriers of Task Force 77.

"Lucky Pierre" vs. "Bedcheck Charlie":

Throughout the Korean War, the North Korean People's Air Fore managed to be a thorn in the side of the U.S. Air Force with nighttime nuisance raids mounted by Po-2 and Yak-11 light aircraft. The airplanes were wood and fabric, making them very difficult to pick up on radar. One Po-2 inflicted more damage on the USAF than the rest of the NKPAF combined when it bombed Kimpo air base in the Spring of 1952, destroying six F-86 Sabres and damaging ten others. A Marine F7F Tigercat of VMF(N)-513 scored the first success against the night raiders when CAPT E.B. Long and WO R.C. Buckingham shot down a Po-2 on July 1, 1951. In 1952 an F-94A Starfire managed to shoot down a Po-2 when the Starfire throttled back, dropping gear and flaps to stay with the slow biplane; unfortunately the Starfire immediately stalled and spun from the recoil of its guns, killing the pilot and observer. Another F-94 was lost in the summer of 1952 when it collided with a Yak-11. Jets were too much for the "Bedcheck Charlies," and a flight of four armed T-6 Texans were used in 1953 against them with no success. One June 16, the new Yak-18s being used by the NKPAF had their most successful night when two of them destroyed 5 million gallons of fuel in a dump in Inchon. The mighty Air Force was forced to ask the Navy for assistance.

LT Guy P. "Lucky Pierre" Bordelon, USN, was the commanding officer of VC-3 Detachment D, aboard the USS "Princeton" when the call for help came on June 17, 1953. Bordelon took two of the detachment's F4U-5N Corsairs to Kimpo, including BuNo 124453, his personal aircraft with the assignment of hunting the Bedcheck Charlies. Between June 29 and July 17, 1953, Bordelon shot down four Yak-18s and one Yak-11 over Seoul. It was the greatest success by one pilot against the North Korean raiders, making Bordelon the only U.S. Navy ace of the Korean war, as well as the only "all-prop" ace. Bordelon returned to the "Princeton," leaving 124453 at Kimpo to be flown by an Air Force pilot if there were any more raids. The Air Force pilot immediately totalled the Corsair in a daytime crash, due to unfamiliarity with "Old Hose Nose."


A few years ago, Minicraft released what it called an F4U-5N in 1/48. The kit was universally damned as inaccurate and so bad that it could not be turned into an accurate model without considerable scratchbuilding by the modeler. Thus, when Hasegawa announced this past summer that they were releasing an entire series of late model Corsairs - the F4U-5N, F4U-7 and AU-1 - fans of the Corsair breathed a hopeful sigh of relief.

The model comes on nine sprues of light grey plastic and one clear. Even if the F4U-7 and AU-1 had not already been announced, it would be obvious they were on the way from the fact that the cowling is on its own separate sprue, and the ten HVARs provided (the F4U-7 and AU-1 both had ten underwing stations for rockets). The parts are crisp and flash-free. The best description is "the Tamiya Corsair without folding wings." The kit provides decals for the F4U-5N flown by LT. Guy P. Bordelon, and an all-black Marine Corsair of VMF(N)-513 flown by CAPT Eugene Derrickson in 1951.

Though Hasegawa has established a new level of cockpit detail with the release of the Tenzan, Hayate and Shiden-Kai models, the cockpit detail of this F4U-5N reverts to the quality level of the F-86 Sabre and P-47 Thunderbolts, i.e., adequate but not great. Fortunately, the fact that the cockpit of late Corsairs was painted black will hide some of the lack of detail, but there will certainly be room for True Details and other aftermarket companies to release a late-model Corsair cockpit (it's close enough to be virtually the same for all three). Marco Polo's representative informed me that they will release the kit with a Jaguar resin cockpit in the near future (I would guess after the new year). Don't get me wrong: the cockpit is adequate, and with seatbelts and a few scratchbuilt levers on the side panels, will be acceptable. The two piece cockpit canopy is very thin and clear.


Like all the recent Hasegawa releases, the kit is well-engineered and assembles with a minimum of hassle. There are none of the fit problems that used to plague Hasegawa kits, like the wing-to-fuselage join of the P-47 or the cockpit splice of the Typhoon.

The cockpit is simple, but then the cockpit of the real thing was much simplified as compared to the preceding Corsairs. The cockpit of most Navy night fighters were painted black when they got to the unit. I painted the cockpit black, adding color by painting the switches on the side consoles, and making seat pads from gaffer's tape, which were painted yellow. I also used some photo-etch levers to flesh out the throttle quadrant, and finished off with a Pro-Modeler seatbelt decal, which I applied to some lead foil from a wine bottle, then cut free. The foil allows the seat belt to be posed more realistically that would otherwise be the case with a decal. The gunsight provided in the kit is the N-5 used by the F4U-5, rather than the gyroscopic N-20 sight used in the F4U-5N. I replaced the kit part with a K-14 gunsight from an old Monogram P-51D kit, which looks very close to the N-20 - at least in 1/48 scale. I also added the control boxes for the armament which were positioned on the coaming, to either side of the gunsight.

Other than the additions to the cockpit, I built the model out of the box according to the instructions and encountered no difficulties.

Once the wing was assembled, I noticed some mold sinking on the upper surfaces over the molded-in wheel wells. This isn't a big deal, and it seemed to me that cleaning it up would result in more loss of surface detail than was warranted by the problem. One can always explain it away as stress on the aluminum.

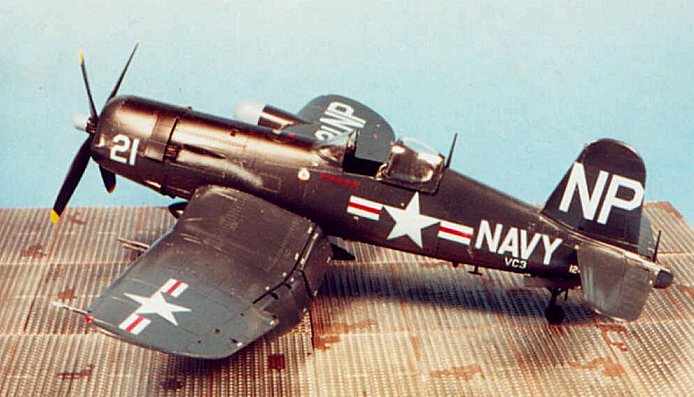

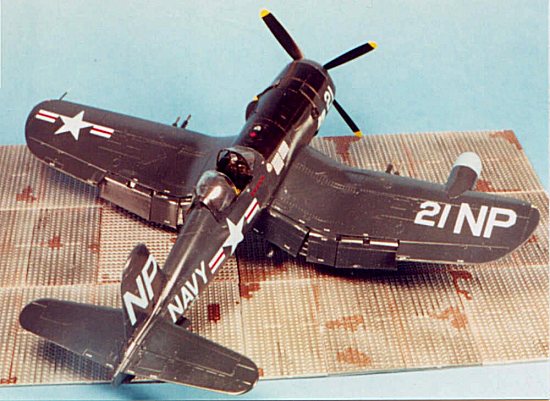

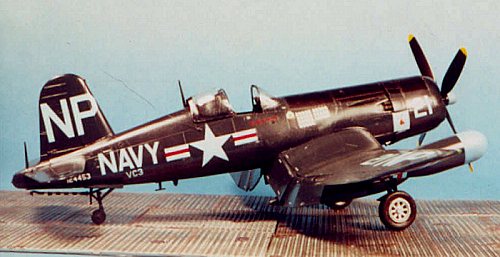

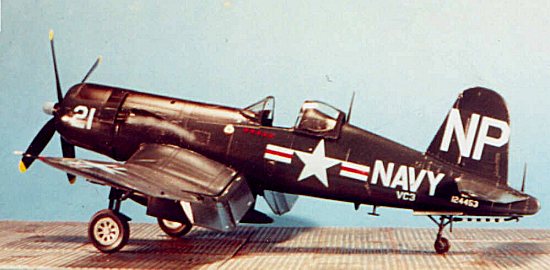

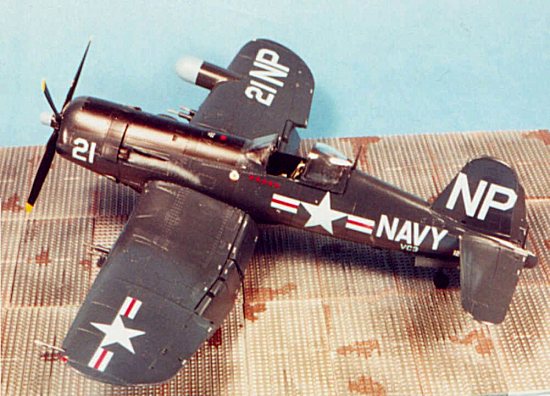

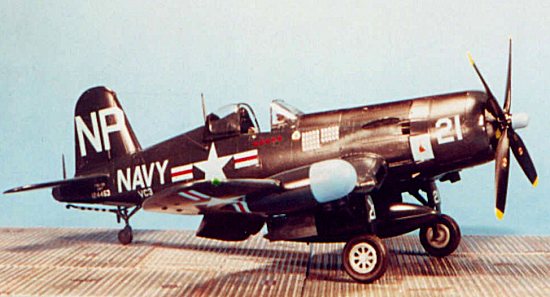

There have been discussions as to whether the anti-glare panel on the upper nose was black or flat dark sea blue; I went with black, but have since seen a color photograph of a Corsair with a flat dark sea blue antiglare panel that leads me to think this is right. Hasegawa calls for the radome to be painted black. The standard color on the white-marked night fighters was white, and I learned that it was possible Bordelon's airplane had had that white area painted with the toned-down light blue paint when the markings were revised. I decided to go with that on this model, and mixed some light blue-grey to match the decals. The model was painted overall with Gunze-Sanyo "Midnight Blue," which I think is an excellent representation of Glossy Sea Blue.


I had previously thought that the toned-down national markings were done by spray painting a thin coat of Glossy Sea Blue over them. However, there is a color photograph of "Yokosuka Queen," a fellow aircraft of VC-3 Detachment D - Bordelon's unit - and the blue of the markings looks exactly like the decals the kit provides.

The decals are a bit thicker than Micro-Scale decals would be, but they went on easily and melted down under a coat of Micro-Sol with no difficulty.

Final finish and weathering:

There is a photo of Bordelon walking away from his Corsair, which is parked at Kimpo Air Base, at <>. The airplane does not appear overly dinged, which would accord with the fact it was based aboard ship - where it would receive better care than it would ashore - before coming to Kimpo to battle the Bedcheck Charlies. One can see light colored exhaust staining on the fuselage above the wing, and I duplicated this airbrushing some Tamiya "Smoke," which had been mixed with some Tamiya "Neutral Grey." I also drybrushed some mud stains on the tires.

I added the antenna wires with nylon thread.


I have wanted late model Corsairs in my collection so much I have done several resin conversions of the Hasegawa F4U-4. This kit from Hasegawa solves that problem permanently. The F4U-5N looks great sitting at the end of a line of U-birds that starts with a weathered-out Solomons-based F4U-1. The longer nose of the F4U-5N looks better than the earlier versions, as the Griffon Spitfire looks more rakish than the Merlin-powered marks.

Thanks to Marco Polo Imports for the review copy.
